DY3M PERMIL570UASC03　　  DY3MPERMIL570UASC03Large flow rate cartridge with large diameter design (165mm), external pressure filtration, high strength support skeleton both inside and outside, multi-layer composite progressive filtration material, overall hot melt welding, external sealing ring. Single branch flow rate 50-90m³/H design, suitable for large reverse osmosis pre-filtration and other fields.　　Product Characteristics　　-Extended service life guaranteed by ultra-high dirt-holding capacity, thus reducing costs;　　-The number of filter cartridges to be replaced is substantially reduced, thus saving labor costs;　　-The design of the sealed interface reduces the risk of bypass flow, thus increasing filtration efficiency;　　-Easy installation and low labor costs;　　-Wide range of chemical applicability can be used in a variety of applications.　　Technical Specifications　　-Filter media: glass fiber, polypropylene (PP);　　-Support/deflector layer: polypropylene;　　-End cap material: glass fiber reinforced polypropylene (PP); 　　-Seal material: ethylene propylene rubber, Teflon-coated Viton.　　Filter cartridge performance:　　-Filtration precision:1μm, 3μm, 5μm, 10μm, 20μm, 50μm, 70μm, 100μm;　　-Operating temperature: 80℃;　　-Pressure drop: 3.4Barat82℃.　　-Recommended pressure drop for cartridge replacement: 2.4Barat20℃.　　-Recommended water flow rate: 900LPM 　　Application areas: -Large-scale reverse osmosis pretreatment filtration　　-Large reverse osmosis pretreatment filtration;　　-Electronic industry high-purity water pre-filtration;　　-Petrochemical industry amine liquid filtration, oilfield reinjection water filtration;　　-Electric power, coal chemical industry security filtration, seawater desalination pretreatment.　

RB40B16G20NNRB40B16G20NN high flow filter element with large diameter design (165mm), external pressure filtration, high-strength support skeleton both inside and outside, using multi-layer composite progressive filtration material, overall hot melt welding, and external sealing ring. Single flow rate of 50-90m ³/H design, suitable for large-scale reverse osmosis pre filtration and other fields.Product Features·Under the guarantee of ultra-high pollutant capacity, the service life has been extended, thereby reducing costs;·The number of filter cartridges that need to be replaced has been significantly reduced, thereby saving labor costs;·The design of sealed interfaces reduces the risk of bypass flow, thereby improving filtration efficiency;·Easy to install, low labor cost;·The wide range of chemical applications can be applied to various fields.Technical specifications·Filter material: fiberglass, polypropylene (PP);·Support/diversion layer: polypropylene;·End cap material: glass fiber reinforced polypropylene;  ·Sealing ring material: Ethylene propylene rubber, PTFE coated fluororubber.Filter performance:·Filtering accuracy: 1 μ m, 3 μ m, 5 μ m, 10 μ m, 20 μ m, 50 μ m, 70 μ m, 100 μ m;·Operating temperature: 80 ℃;·Pressure drop: 3.4Barat82 ℃·Recommended pressure drop for filter replacement: 2.4Bar, 20 ℃·Suggested filtered water flow rate: 900LPMApplication Fields·Large scale reverse osmosis pretreatment filtration;·Pre filtration of high-purity water in the electronics industry;·Petrochemical industry amine liquid filtration, oilfield reinjection water filtration;·Power and coal chemical industry security filtration, seawater desalination pretreatment.

HTC-170-AMS　　HTC-170-AMSFolding high flow filter element is made of polyester fiber cloth filtering material with durable performance, filter media, center rod, end cap as a whole glued together to ensure that the end cap closure is better, due to its folding design, and the other filter element relative to provide a larger filtration area, longer filtration life, reduce the number of times the cartridge is renewed, reduce the cost of filtration.　　Product Characteristics　　Large dirt-holding capacity and low differential pressure; 　　-Multi-folding design increases the filtration area and reduces the number of cartridge replacements.　　Technical specification　　-Cartridge size: Outer diameter: 7-3/4“ (197mm) Length: 9-5/8” (245mm) 19-1/2“ (495mm) 30-3/4” (781mm)　　-Parts Material: Filter Material: Polyester Fiber Membrane　　-End cap: PU　　-Cartridge performance: Filtration accuracy: 1μm, 5μm, 10μm, 20μm, 50μm　　  Operating temperature: 60℃　　  Operating pressure: 40PSI 　　Fields of application　　RO security filtration, seawater desalination pre-treatment;　　-Power plant condensate filtration;　　-Filtration of raw materials, solvents and water in biopharmaceutical industry;　　-Paint, ink, CD-ROM, magnetic media, petrochemical, refining;　　-Microelectronics, film, fiber, resin.　

DYHF-40 Backwashing large capacity folded cartridge   　　DYHF-40 Backwashing large capacity folded cartridge ，With an opening at one end, the filtration fluid flows from the inside to the outside. The large diameter of the cartridge (152mm) increases the effective filration area, which can greatly reduce the number of cartridges and reduce the size of the housing. The long filter life in the application reduces investment and labor costs.　　High-flow filter cartridge product characteristics　　-Filtering direction from inside to outside ensures that all impurities are retained inside the cartridge;　　-Gradual pore size structure, high dirt-holding capacity, lower labor and operating costs;　　-Smaller filter housing can be used, reducing investment costs and saving floor space;　　-Replacement is faster, easier and safer, O-ring design ensures the reliability of the filter;　　-Hot melt bonding material prevents particle release and unloading.　　Technical specifications　　-Element size: OD: 6” (152mm)　　 Length: 20“ (535㎜), 40” (1024㎜), 60” (1524㎜)　　-Parts material:　　1.Filter material: folded glass fiber, folded deep polypropylene (PP), meltblown polypropylene;　　2. Support/deflector layer: polypropylene;　　3. End cap: glass fiber reinforced polypropylene;　　4. Seal material: ethylene propylene rubber, nitrile rubber.　　5. Filtration precision: 1μm, 3μm, 5μm, 10μm, 20μm, 50μm, 75μm, 100μm;　　6. Operating temperature: folded glass fiber: 121°C; folded polypropylene: 82°C; meltblown polypropylene: 65°C　　7. Pressure drop: 3.4Bar　　8. Recommended pressure drop for cartridge replacement: 2.4Bar　　9. Recommended filtration flow rate: 20“ 450LPM; 40” 800LPM; 60” 1150LPM.　　Applications　　-Large reverse osmosis pretreatment filtration;　　High purity water pre-filtration for electronic industry;　　-Petrochemical industry amine liquid filtration, oilfield reinjection water filtration;　　-Power, coal chemical industry security filtration, seawater desalination pretreatment.

　　DY3M large flow rate cartridge with large diameter design, external pressure filtration, high strength support skeleton both inside and outside, multi-layer composite progressive filtration material, overall hot melt welding, external sealing ring. Single flow rate 50-90m³/H design, suitable for large reverse osmosis pre-filtration and other fields.　　Product Characteristics　　-Extended service life guaranteed by ultra-high dirt-holding capacity, thus reducing costs;　　-The number of filter cartridges to be replaced is substantially reduced, thus saving labor costs;　　-The design of the sealed interface reduces the risk of bypass flow, thus increasing filtration efficiency;　　-Easy installation and low labor costs;　　-Wide range of chemical applicability can be used in a variety of applications.　　Technical Specifications　　-Filter media: glass fiber, polypropylene (PP);　　-Support/deflector layer: polypropylene;　　-End cap material: glass fiber reinforced polypropylene (PP);　　-Seal material: ethylene propylene rubber, Teflon-coated Viton.　　Filter cartridge performance:　　-Filtration precision:1μm, 3μm, 5μm, 10μm, 20μm, 50μm, 70μm, 100μm;　　-**High operating temperature: 80℃;　　**Maximum pressure drop: 3.4Barat82℃.　　-Recommended pressure drop for filter element replacement: 2.4Bar, 20℃.　　-Suggested **Maximum water flow rate: 900LPM　　Applications　　-Large reverse osmosis pretreatment filtration;　　-Electronic industry high-purity water pre-filtration;　　-Petrochemical industry amine liquid filtration, oilfield reinjection water filtration;　　-Electric power, coal chemical industry security filtration, seawater desalination pretreatment.

DY Rizonflow  RFP005-40NPX-LDY Rizonflow RFP005-40NPX-L high flow rate cartridge large diameter design, external pressure filtration, internal high strength support skeleton, multi-layer composite progressive filtration material, overall heat fusion welding, built-in sealing ring. Single branch flow rate 50-90m³/H design, suitable for large reverse osmosis pre-filtration and other fields.　　Product Characteristics　　-High dirt-holding capacity and long service life of the filter element;　　-Design of sealing interface reduces the risk of bypass flow and improves filtration efficiency;　　Technical specifications　　-Material of parts: Filter material: polypropylene (PP), glass fiber.　　     Support/deflector layer: polypropylene　　     End cap material: glass fiber reinforced polypropylene　　     Seal material: ethylene-propylene rubber, silicone rubber, fluorine rubber, nitrile rubber　　-Cartridge performance: Filtration precision: 1μm, 5μm, 10μm, 20μm, 40μm, 70μm, 100μm　　     Operating temperature: 82℃　　     Pressure drop: 3.4Bar82℃　　     Recommended filtration flow rate: 1300LPM　　Application areas　　-Large-scale reverse osmosis pretreatment filtration;　　-High-purity water pre-filtration for electronic industry;　　-Petrochemical industry amine liquid filtration, oilfield reinjection water filtration;　　-Electric power, coal chemical industry security filtration, seawater desalination pretreatment.　

DY Parker  RFP050-40NDY Parker RFP050-40N high flow rate cartridge large diameter design, external pressure filtration, internal high strength support skeleton, multi-layer composite progressive filtration material, overall hot melt welding, built-in sealing ring. Single branch flow rate 50-90m³/H design, suitable for large reverse osmosis pre-filtration and other fields.　　Product Characteristics　　-High dirt-holding capacity and long service life of the filter element;　　-Design of sealing interface reduces the risk of bypass flow and improves filtration efficiency;　　Technical specifications　　-Material of parts: Filter material: polypropylene (PP), glass fiber.　　     Support/deflector layer: polypropylene　　     End cap material: glass fiber reinforced polypropylene　　     Seal material: ethylene-propylene rubber, silicone rubber, fluorine rubber, nitrile rubber　　-Cartridge performance: Filtration precision: 1μm, 5μm, 10μm, 20μm, 40μm, 70μm, 100μm　　     Operating temperature: 82℃　　     Pressure drop: 3.4Bar82℃　　     Recommended filtration flow rate: 1300LPM　　Application areas　　-Large-scale reverse osmosis pretreatment filtration;　　-High-purity water pre-filtration for electronic industry;　　-Petrochemical industry amine liquid filtration, oilfield reinjection water filtration;　　-Electric power, coal chemical industry security filtration, seawater desalination pretreatment.　　

MFF-0P-PP-5  High flux folded cartridge

High-flow cartridges are internally pressurized, open at one end, and filter fluid flow is from inside to outside. The large diameter of the cartridge (152 mm) increases the effective filtration area, which can greatly reduce the number of cartridges and reduce the size of the housing. The long filter life in the application reduces investment and labor costs.　　High-flow filter cartridge product characteristics　　-Filtering direction from inside to outside ensures that all impurities are retained inside the cartridge;　　-Gradual pore size structure, high dirt-holding capacity, lower labor and operating costs;　　-Smaller filter housing can be used, reducing investment costs and saving floor space;　　-Replacement is faster, easier and safer, O-ring design ensures the reliability of the filter;　　-Hot melt bonding material prevents particle release and unloading.　　Technical specifications　　-Element size: OD: 6” (152mm)　　 Length: 20“ (535㎜), 40” (1024㎜), 60” (1524㎜)　　-Parts material:　　1.Filter material: folded glass fiber, folded deep polypropylene (PP), meltblown polypropylene;　　2. Support/deflector layer: polypropylene;　　3. End cap: glass fiber reinforced polypropylene;　　4. Seal material: ethylene propylene rubber, nitrile rubber.　　5. Filtration precision: 1μm, 3μm, 5μm, 10μm, 20μm, 50μm, 75μm, 100μm;　　6. Operating temperature: folded glass fiber: 121°C; folded polypropylene: 82°C; meltblown polypropylene: 65°C　　7. Pressure drop: 3.4Bar　　8. Recommended pressure drop for cartridge replacement: 2.4Bar　　9. Recommended filtration flow rate: 20“ 450LPM; 40” 800LPM; 60” 1150LPM.　　Applications　　-Large reverse osmosis pretreatment filtration;　　High purity water pre-filtration for electronic industry;　　-Petrochemical industry amine liquid filtration, oilfield reinjection water filtration;　　-Power, coal chemical industry security filtration, seawater desalination pretreatment.

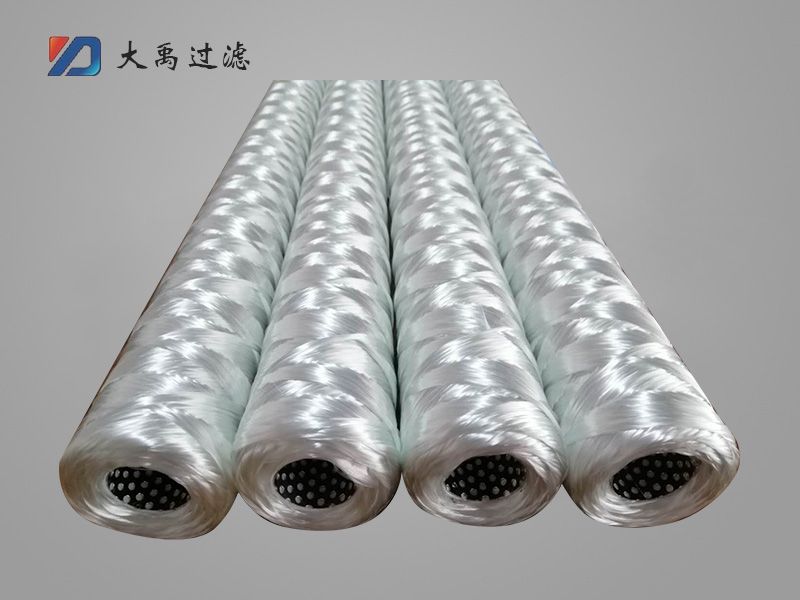

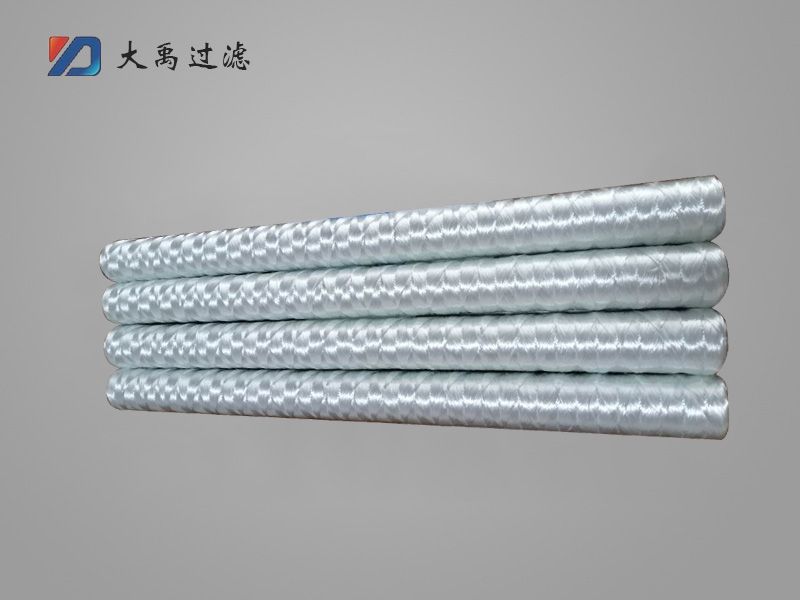

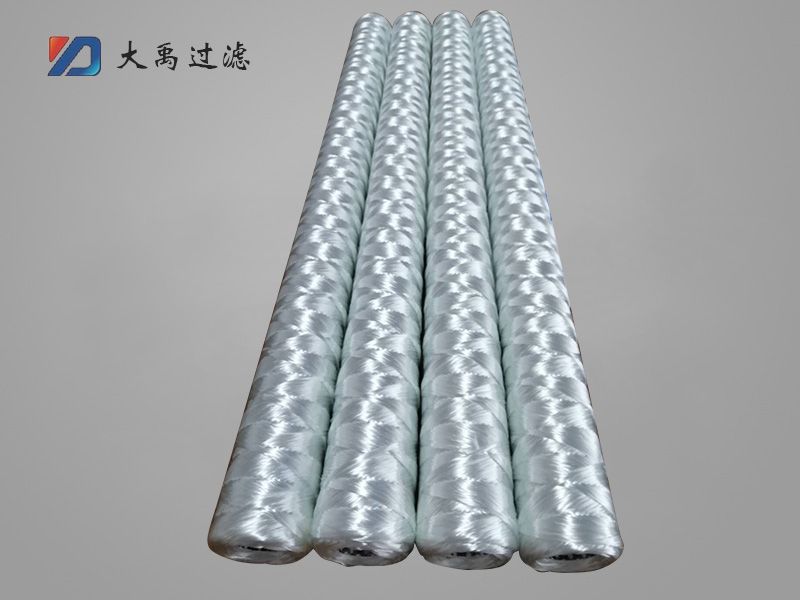

Power Plant Condensate Wire Wound Filter ElementSpecialized Powder Covered Filter for Power PlantsPower plant special condensate running filter elementDirect supply 60 inches/70 inches/80 inches iron removal filter element70-inch folded start-up filter element, Xinxiang Dayu FiltrationPower plant special condensate running filter element70 inches condensate startup filter elementManufacturer hot sale condensate fine treatment filter elementPower plant special powder covered filter filter elementPre-filter filter element Xinxiang Dayu manufacturer　　In the heat exchanger heat transfer process, there are iron (caused by oxygen corrosion and weak acid corrosion), or oil and other pollutants into the condensate, the boiler and turbine operation hazards, therefore, to the iron containing oil condensate fine-treatment, to meet the boiler feed water standards.　　The 70” Power Plant Condensate Wire Wound Filter Element is made from continuous high performance fiber filter media, wound using special equipment. The length of the filter element is up to 70” (1778mm), the center rod adopts 304, 316 stainless steel to strengthen the skeleton, which ensures the overall appearance of the filter element, and the high-performance fiber ensures that the filter element is not easy to deform and the fiber fall off, and can be installed in the existing equipment. External threads and stainless steel wire rod connections ensure the installation of the cartridge. It has a long mechanical service life and is widely used in iron removal and filtration of condensate in power plants.　　Product Characteristics 　　-Continuous polypropylene fiber, all the parameters of the filter element are arranged by computer to ensure the stability of the filtration efficiency;　　-All stainless steel with threaded interface, center tube and connectors;　　-High dirt-holding capacity for the whole length;　　-Can provide different sizes of pre-filter elements for various applications;　　-Low investment cost, low pressure loss before and after condensate fine treatment.　　-Simple system, no acid and alkali consumption and regeneration of acid and alkali waste pollution, waste is easy to deal with, in favor of environmental protection.　　Technical parameters of condensate filter element　　Filter element lengthsports eventDY-70″filter elementDY-70″filter elementDY-60″filter elementmediumPolypropylene fiberPolypropylene fiberPolypropylene fiberCenter Skeleton Material304304304substructureM33×1.5connection threadM33×1.5connection threadG33×2connection threadtop structureM8threadM10threadM6threadinside diameterΦ30mmφ30mmφ30mmouter diameterФ50mmФ50mmφ64mmFiltration accuracy5μm5μm5μm1778mm1780mm1524mmflux8~9m3/h8~9m3/h8.3m3/hdropout voltage2.45kg/cm²2.45kg/cm²2.45kg/cm²　Application Fields　　-Power plant condensate iron removal filtration.　　-RO security filtration, desalination pre-treatment.　

Power Plant Condensate Wire Wound Filter ElementSpecialized Powder Covered Filter for Power PlantsPower plant special condensate running filter elementDirect supply 60 inches/70 inches/80 inches iron removal filter element70-inch folded start-up filter element, Xinxiang Dayu FiltrationPower plant special condensate running filter element70 inches condensate startup filter elementManufacturer hot sale condensate fine treatment filter elementPower plant special powder covered filter filter elementPre-filter filter element Xinxiang Dayu manufacturer　　In the heat exchanger heat transfer process, there are iron (caused by oxygen corrosion and weak acid corrosion), or oil and other pollutants into the condensate, the boiler and turbine operation hazards, therefore, to the iron containing oil condensate fine-treatment, to meet the boiler feed water standards.　　The 70” Power Plant Condensate Wire Wound Filter Element is made from continuous high performance fiber filter media, wound using special equipment. The length of the filter element is up to 70” (1778mm), the center rod adopts 304, 316 stainless steel to strengthen the skeleton, which ensures the overall appearance of the filter element, and the high-performance fiber ensures that the filter element is not easy to deform and the fiber fall off, and can be installed in the existing equipment. External threads and stainless steel wire rod connections ensure the installation of the cartridge. It has a long mechanical service life and is widely used in iron removal and filtration of condensate in power plants.　　Product Characteristics 　　-Continuous polypropylene fiber, all the parameters of the filter element are arranged by computer to ensure the stability of the filtration efficiency;　　-All stainless steel with threaded interface, center tube and connectors;　　-High dirt-holding capacity for the whole length;　　-Can provide different sizes of pre-filter elements for various applications;　　-Low investment cost, low pressure loss before and after condensate fine treatment.　　-Simple system, no acid and alkali consumption and regeneration of acid and alkali waste pollution, waste is easy to deal with, in favor of environmental protection.　　Technical parameters of condensate filter element　　Filter element lengthsports eventDY-70″filter elementDY-70″filter elementDY-60″filter elementmediumPolypropylene fiberPolypropylene fiberPolypropylene fiberCenter Skeleton Material304304304substructureM33×1.5connection threadM33×1.5connection threadG33×2connection threadtop structureM8threadM10threadM6threadinside diameterΦ30mmφ30mmφ30mmouter diameterФ50mmФ50mmφ64mmFiltration accuracy5μm5μm5μm1778mm1780mm1524mmflux8~9m3/h8~9m3/h8.3m3/hdropout voltage2.45kg/cm²2.45kg/cm²2.45kg/cm²　Application Fields　　-Power plant condensate iron removal filtration.　　-RO security filtration, desalination pre-treatment.　

Power Plant Condensate Wire Wound Filter ElementSpecialized Powder Covered Filter for Power PlantsPower plant special condensate running filter elementDirect supply 60 inches/70 inches/80 inches iron removal filter element70-inch folded start-up filter element, Xinxiang Dayu FiltrationPower plant special condensate running filter element70 inches condensate startup filter elementManufacturer hot sale condensate fine treatment filter elementPower plant special powder covered filter filter elementPre-filter filter element Xinxiang Dayu manufacturer　　In the heat exchanger heat transfer process, there are iron (caused by oxygen corrosion and weak acid corrosion), or oil and other pollutants into the condensate, the boiler and turbine operation hazards, therefore, to the iron containing oil condensate fine-treatment, to meet the boiler feed water standards.　　The 70” Power Plant Condensate Wire Wound Filter Element is made from continuous high performance fiber filter media, wound using special equipment. The length of the filter element is up to 70” (1778mm), the center rod adopts 304, 316 stainless steel to strengthen the skeleton, which ensures the overall appearance of the filter element, and the high-performance fiber ensures that the filter element is not easy to deform and the fiber fall off, and can be installed in the existing equipment. External threads and stainless steel wire rod connections ensure the installation of the cartridge. It has a long mechanical service life and is widely used in iron removal and filtration of condensate in power plants.　　Product Characteristics 　　-Continuous polypropylene fiber, all the parameters of the filter element are arranged by computer to ensure the stability of the filtration efficiency;　　-All stainless steel with threaded interface, center tube and connectors;　　-High dirt-holding capacity for the whole length;　　-Can provide different sizes of pre-filter elements for various applications;　　-Low investment cost, low pressure loss before and after condensate fine treatment.　　-Simple system, no acid and alkali consumption and regeneration of acid and alkali waste pollution, waste is easy to deal with, in favor of environmental protection.　　Technical parameters of condensate filter element　　Filter element lengthsports eventDY-70″filter elementDY-70″filter elementDY-60″filter elementmediumPolypropylene fiberPolypropylene fiberPolypropylene fiberCenter Skeleton Material304304304substructureM33×1.5connection threadM33×1.5connection threadG33×2connection threadtop structureM8threadM10threadM6threadinside diameterΦ30mmφ30mmφ30mmouter diameterФ50mmФ50mmφ64mmFiltration accuracy5μm5μm5μm1778mm1780mm1524mmflux8~9m3/h8~9m3/h8.3m3/hdropout voltage2.45kg/cm²2.45kg/cm²2.45kg/cm²　Application Fields　　-Power plant condensate iron removal filtration.　　-RO security filtration, desalination pre-treatment.
