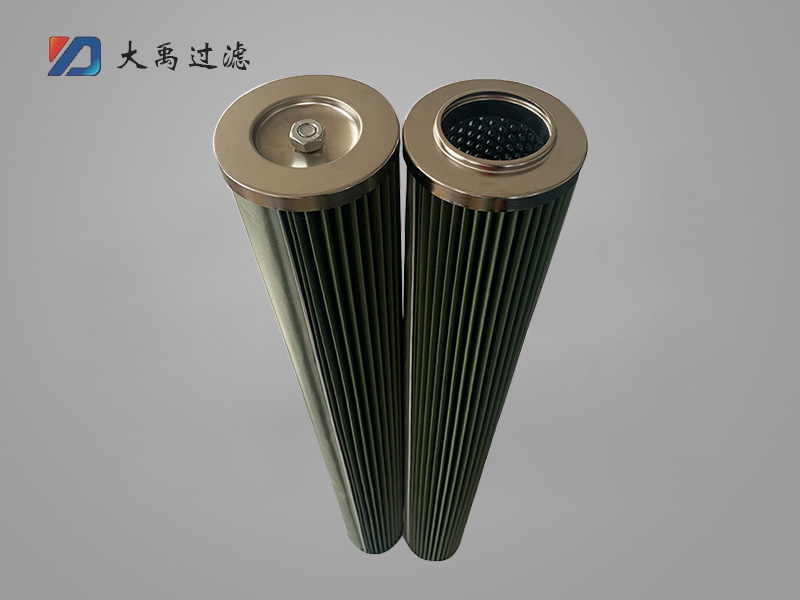

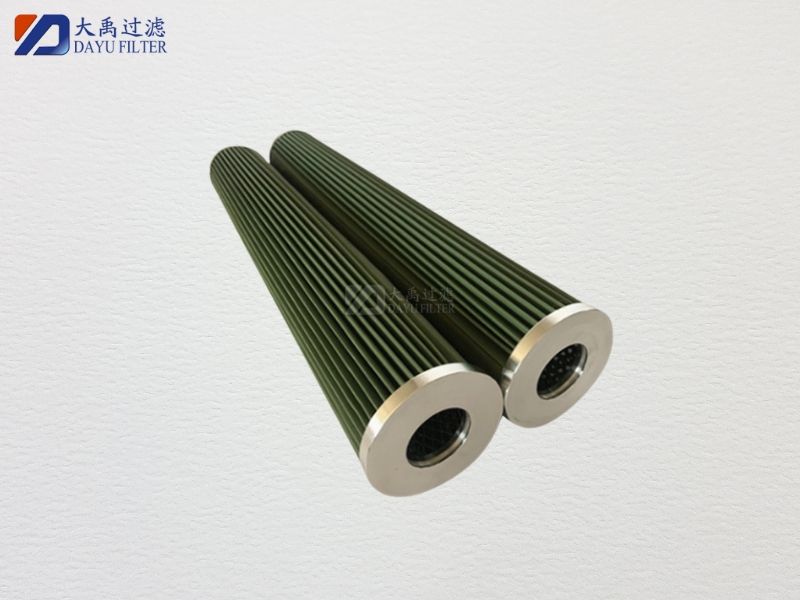

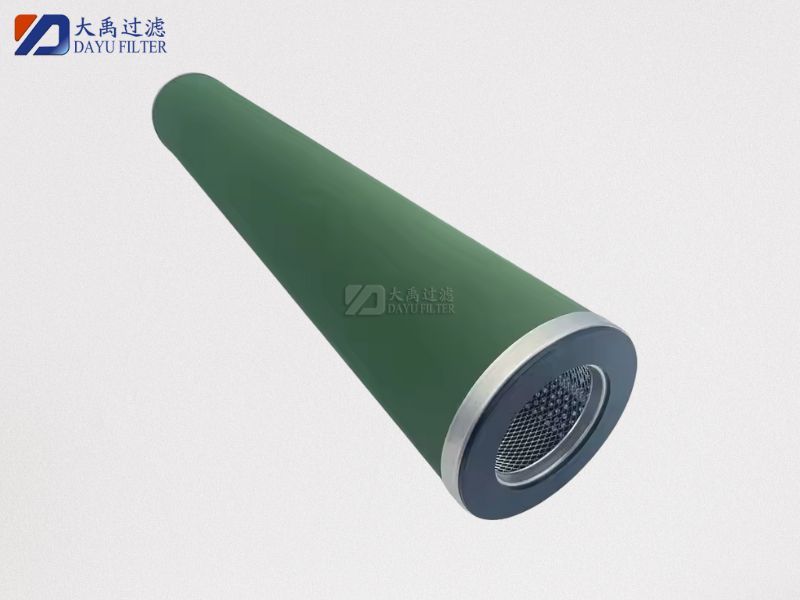

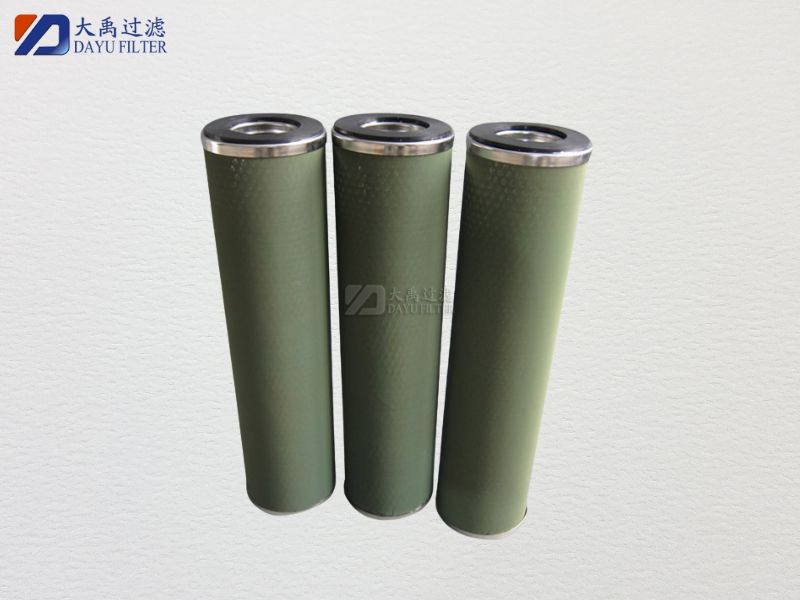

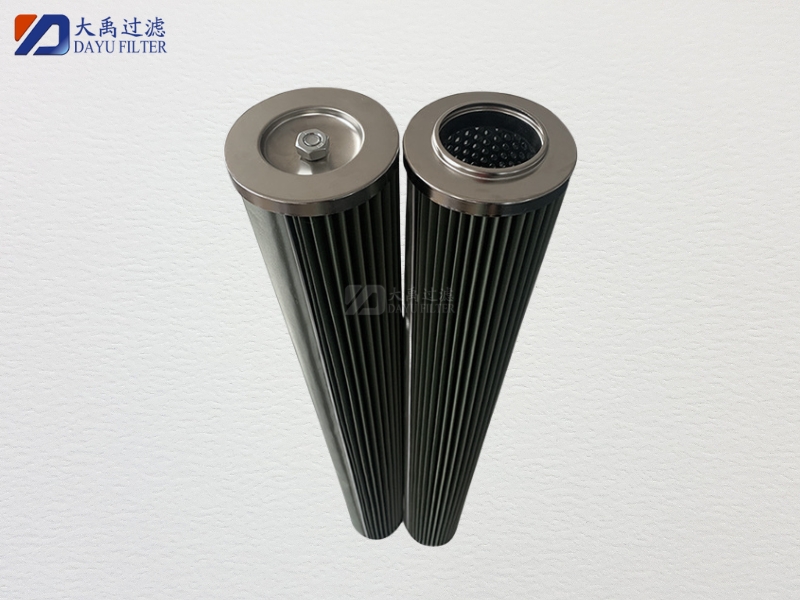

Natural gas filter cartridge is a product that can filter natural gas at different levels, including primary, medium, high, and different levels. It can effectively protect the safe and efficient operation of natural gas equipment and provide stable high-purity gas. Filters and filter cartridges suitable for high and low pressure pipelines can also be manufactured for different operating conditions. At the same time, it can also effectively extend the service life of the equipment, better meet people's requirements for product precision, and thus improve the quality of the machine product itself, while greatly saving production costs.

Performance of natural gas filter element:

1. Good filtration performance, with uniform surface filtration performance for filter particle sizes ranging from 1-200 μ m;

2. Good corrosion resistance, heat resistance, pressure resistance, and wear resistance;

3. Uniform filtration accuracy of pores;

The flow rate per unit area is large;

5. Suitable for low and high temperature environments; After cleaning, it can be reused without replacement.

Main parameters of natural gas filter cartridge:

Working pressure: 0.4MPa, 1.6MPa, 4.0MPa, 6.4MPa (customized for pressures above 6.4MPa).

Working temperature:- 10~+50 ℃.

Filtering accuracy: 1 μ m, 3 μ m, 5 μ m, 10 μ m, 20 μ m, 50 μ m, 100 μ m, 120 μ m, 140 μ m, etc.

Filtration efficiency: 99.99% removal of solid particles (depending on the selected filtration accuracy).
