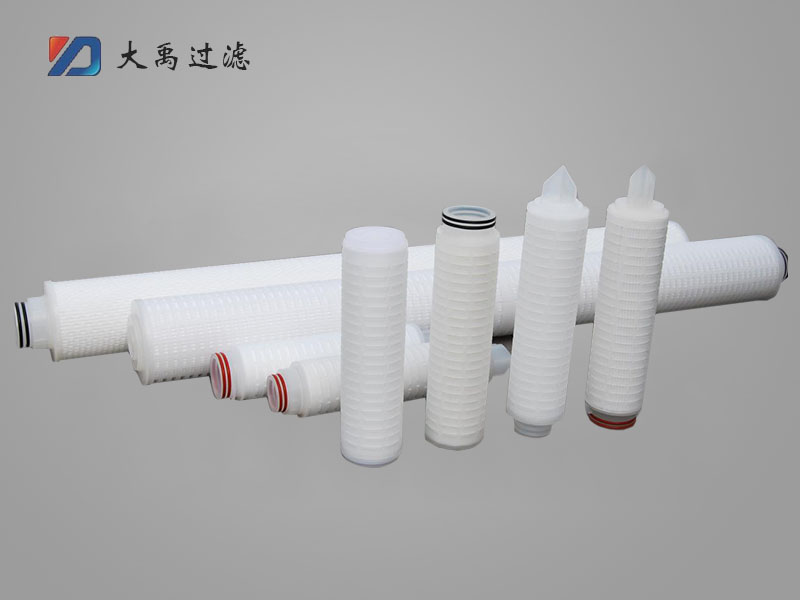

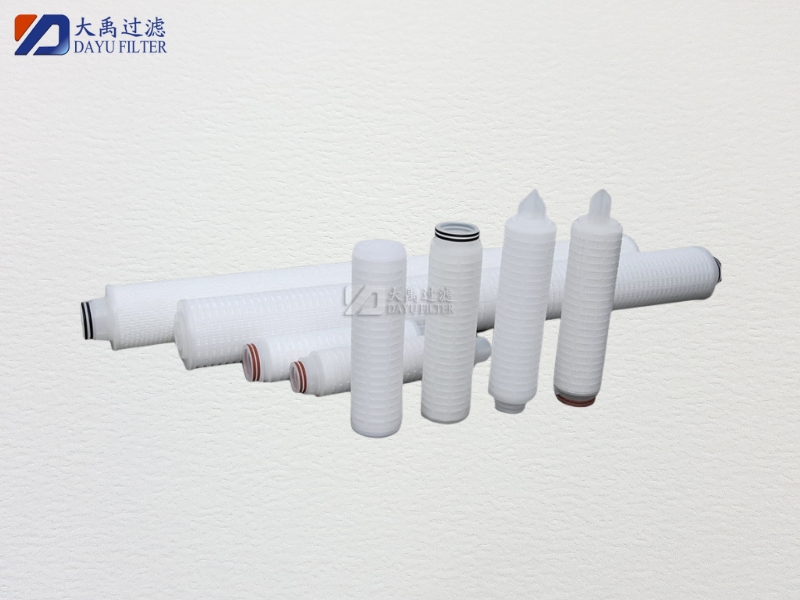

Micro porous folded membrane filter cartridge

The microporous folding membrane filter is made by folding ultra-fine fiber membrane and non-woven fabric or wire mesh. The filter shell, center rod, and end cover are all processed by hot melt welding, with no leakage or pollution. According to different operating conditions and filtration media, there are various options for fiber membranes: polypropylene (PP), polyether sulfone (PES), polytetrafluoroethylene (PTFE), nylon 6 (N6), and polyvinylidene fluoride (PVDF).

Technical indicators

Filtering accuracy: 0.1, 0.22, 0.45, 1, 5, 10, 20, 30, 60 μ m

·Sealing materials: silicone rubber, nitrile rubber, EPDM rubber, fluororubber

·Effective filtration area: 0.6 ㎡/10“

·Filter diameter: outer diameter 69mm, inner diameter 28mm

·Filter cartridge length: 10 ", 20", 30 ", 40"

·Working temperature: 80 ℃, 0.28Mpa

·Positive pressure difference: 0.42Mpa

·Reverse pressure difference: 0.28Mpa

·Sterilization conditions: 121 ℃ for 30 minutes

·Interface types: flat press, 222 interface, 226 interface, threaded interface, customized other interfaces

Product Features

·Hydrophilic filter membrane, uniform pore size distribution, high porosity, high flow rate and particle retention rate;

·Has good temperature and acid alkali resistance;

Application Fields

·Electronics: pre filtration of reverse osmosis water system, pre filtration of deionized water system, chemical filtration, and pure water filtration;

·Medicine: filtration of pharmaceutical, biological, and plasma products, compressed air and gas filtration;

·Food and beverage industry: filtration of mineral water, beverages, fruit juice, and alcoholic beverages;

·Chemistry: Organic solvents, ink filtration;

·Petroleum: oilfield water injection filtration;

·Filtration of electroplating solution, metal cutting fluid, photoresist, and magnetic media
