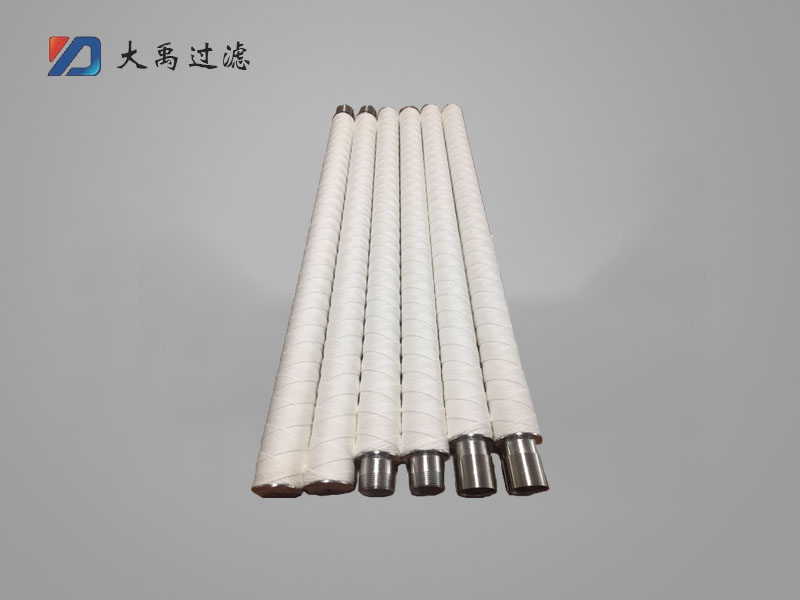

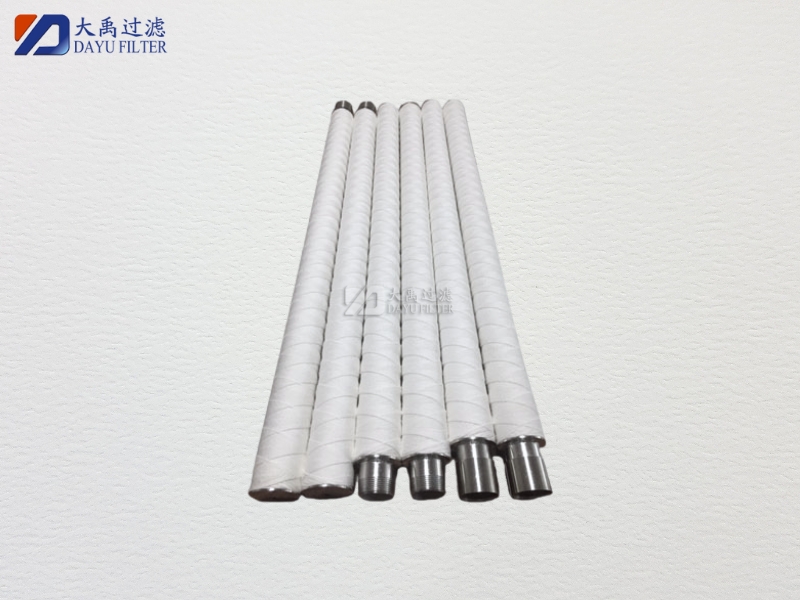

The degreasing cotton wrapped stainless steel filter element is made of a stainless steel inner skeleton and a stronger pressure resistant degreasing cotton material. According to specific computer processes, it is tightly wrapped around the skeleton to form a honeycomb structure with a sparse outer layer and a dense inner layer. It has excellent filtering characteristics and can effectively remove suspended solids, rust, particles and other impurities in the fluid. Poly can be used in non organic solvents such as acid-base and chemical solutions; Can be used in various industries such as organic solvents, water, oil, alkaline solutions, beverages, pharmaceuticals, etc.

Product characteristics

·Can withstand high filtration pressure;

Has good chemical compatibility;

·The filter element can be made of various materials to meet the needs of liquid filtration;

·The structure with dense inside and sparse outside of the filter aperture has good deep filtration effect;

·It can effectively remove suspended solids, particles, etc. in liquids with low pressure drop and large pollutant capacity.

technical specifications

·Filter size: Outer diameter: 63mm, 115mm

Inner diameter: 28mm, 30mm

Length: 10 ", 20", 30 ", 40"

·Component material: Filter material: degreased cotton, polypropylene (PP), fiberglass

Center pole: stainless steel

·Filter performance: Filtration accuracy: 1μm，5μm，10μm，20μm，30μm，50μm，75μm，100μm

application area

·Pre filtration treatment for general drinking water;

·Filtration of acidic and alkaline liquids in chemical processes;

·Filtration of chemical raw materials and organic solvents;

·R. O Reverse osmosis pre filtration treatment;

·Filtration of various slurries such as syrup and chocolate;

·Filtering of imaging drug solution and ink;

·Pre filtration treatment of sterile water and ultrapure water;

·Industrial water, filtration of electroplating solution.
