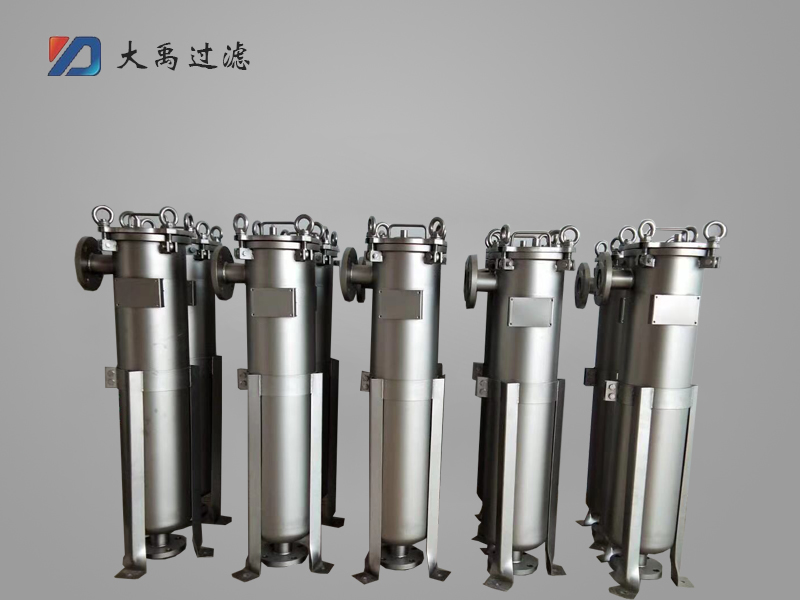

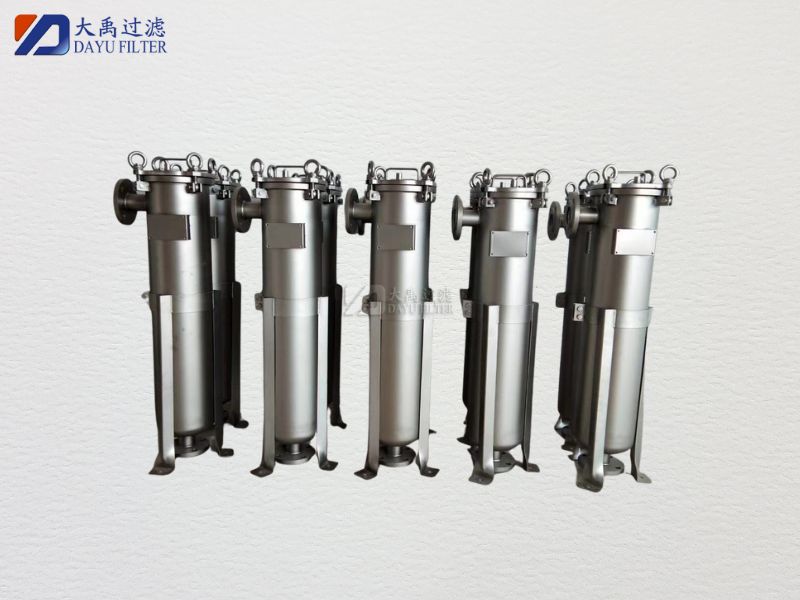

Security Filter, manufactured from premium imported 304 or 316L stainless steel. Internal tubular filter elements include PP melt-blown, wire-wound, pleated, titanium, and activated carbon cartridges. Filter elements are selected based on specific filtration media and design requirements to remove solid particles, bacteria, and other impurities from fluids, ensuring compliance with effluent quality standards.

Technical Parameters

Design Pressure: 0.75–1.6 MPa

Design Temperature: 20°C–120°C

Sealing Type: O-ring and flat gasket

Seal Material: Nitrile rubber, silicone rubber, fluororubber; standard configuration uses silicone seals

Connection Type: Threaded, clamp, GB, HG, DIN, ANSI, JIS standard flanges

Compatible Cartridges: Flush-end, 222, 226 Socket Cartridges

Surface Finish: Matte Shot-blasted, Mirror Polished, Electrolytic Polished

Filtration Accuracy: 0.1μm–150μm

Material: SUS304, 316L

Product Features

1. Equipment can be configured as horizontal or vertical structures based on space constraints.

2. Optional filter elements with any number of cores and precision levels can be selected based on flow rate and accuracy requirements.

3. The partition at the filter element sealing area is CNC precision-bored to guarantee zero liquid bypass leakage.

4. Robust internal and external support ensures filter elements remain stable and aligned during operation, maintaining sealing integrity.

5. Quick-release eye bolts enable rapid equipment access, simplifying maintenance and cartridge replacement.

Application Fields

1. Security and final filtration for high-purity water in electronics, power plants, microelectronics, and semiconductor industries;

2. Security and final filtration for systems including nanofiltration (NF), ultrafiltration (UF), reverse osmosis (RO), and electrodialysis (EDI);

3. Filtration of pharmaceutical injections, large-volume parenteral solutions, eye drops, and herbal medicine solutions; extraction, purification, and concentration of biological products;

4. Filtration of oilfield reinjection water, boiler feedwater, chemical reagents, liquid organic preparations, high-purity chemicals, and concentrated pharmaceuticals;

5. Filtration of drinking purified water, mineral water, fruit juices, tea beverages, and health drinks;

6. Filtration of spirits, wine, beer, rice wine, and other fruit wines; sterilizing filtration for draft beer;

7. Pre-treatment or security filtration in industrial and domestic wastewater treatment and recycled water reuse processes;

8. Filtration, clarification, and purification of various liquids.
