HTC-170-AMS

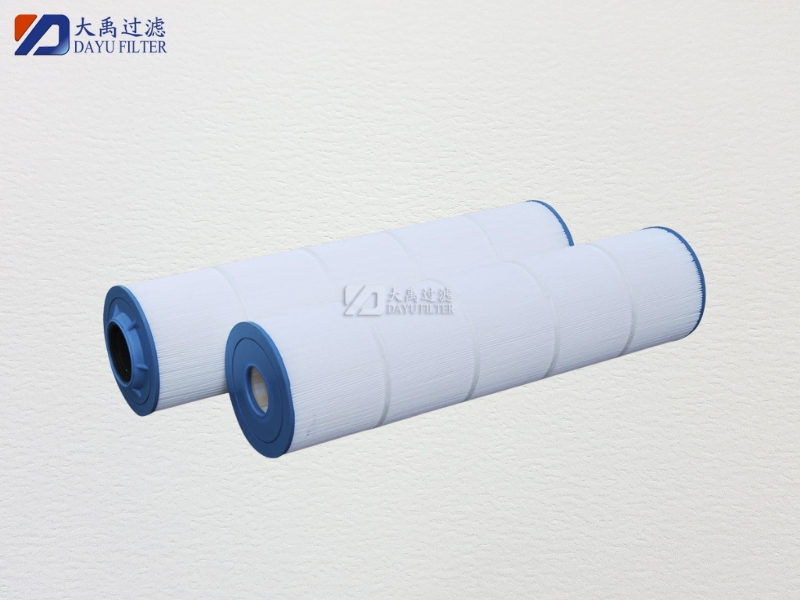

　　HTC-170-AMSFolding high flow filter element is made of polyester fiber cloth filtering material with durable performance, filter media, center rod, end cap as a whole glued together to ensure that the end cap closure is better, due to its folding design, and the other filter element relative to provide a larger filtration area, longer filtration life, reduce the number of times the cartridge is renewed, reduce the cost of filtration.

　　Product Characteristics

　　Large dirt-holding capacity and low differential pressure;

　　-Multi-folding design increases the filtration area and reduces the number of cartridge replacements.

　　Technical specification

　　-Cartridge size: Outer diameter: 7-3/4“ (197mm) Length: 9-5/8” (245mm) 19-1/2“ (495mm) 30-3/4” (781mm)

　　-Parts Material: Filter Material: Polyester Fiber Membrane

　　-End cap: PU

　　-Cartridge performance: Filtration accuracy: 1μm, 5μm, 10μm, 20μm, 50μm

　　  Operating temperature: 60℃

　　  Operating pressure: 40PSI

　　Fields of application

　　RO security filtration, seawater desalination pre-treatment;

　　-Power plant condensate filtration;

　　-Filtration of raw materials, solvents and water in biopharmaceutical industry;

　　-Paint, ink, CD-ROM, magnetic media, petrochemical, refining;

　　-Microelectronics, film, fiber, resin.
