RB40B16G20NN

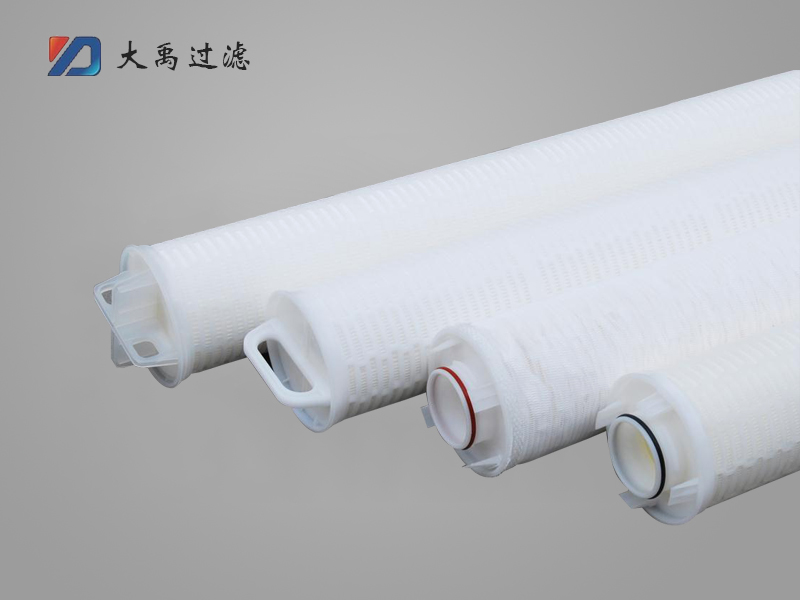

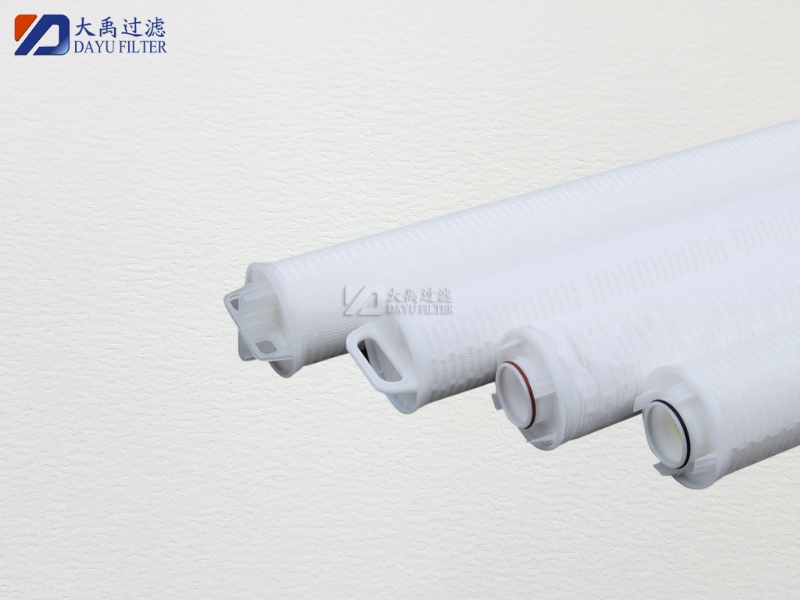

RB40B16G20NN high flow filter element with large diameter design (165mm), external pressure filtration, high-strength support skeleton both inside and outside, using multi-layer composite progressive filtration material, overall hot melt welding, and external sealing ring. Single flow rate of 50-90m ³/H design, suitable for large-scale reverse osmosis pre filtration and other fields.

Product Features

·Under the guarantee of ultra-high pollutant capacity, the service life has been extended, thereby reducing costs;

·The number of filter cartridges that need to be replaced has been significantly reduced, thereby saving labor costs;

·The design of sealed interfaces reduces the risk of bypass flow, thereby improving filtration efficiency;

·Easy to install, low labor cost;

·The wide range of chemical applications can be applied to various fields.

Technical specifications

·Filter material: fiberglass, polypropylene (PP);

·Support/diversion layer: polypropylene;

·End cap material: glass fiber reinforced polypropylene;

·Sealing ring material: Ethylene propylene rubber, PTFE coated fluororubber.

Filter performance:

·Filtering accuracy: 1 μ m, 3 μ m, 5 μ m, 10 μ m, 20 μ m, 50 μ m, 70 μ m, 100 μ m;

·Operating temperature: 80 ℃;

·Pressure drop: 3.4Barat82 ℃

·Recommended pressure drop for filter replacement: 2.4Bar, 20 ℃

·Suggested filtered water flow rate: 900LPM

Application Fields

·Large scale reverse osmosis pretreatment filtration;

·Pre filtration of high-purity water in the electronics industry;

·Petrochemical industry amine liquid filtration, oilfield reinjection water filtration;

·Power and coal chemical industry security filtration, seawater desalination pretreatment.
