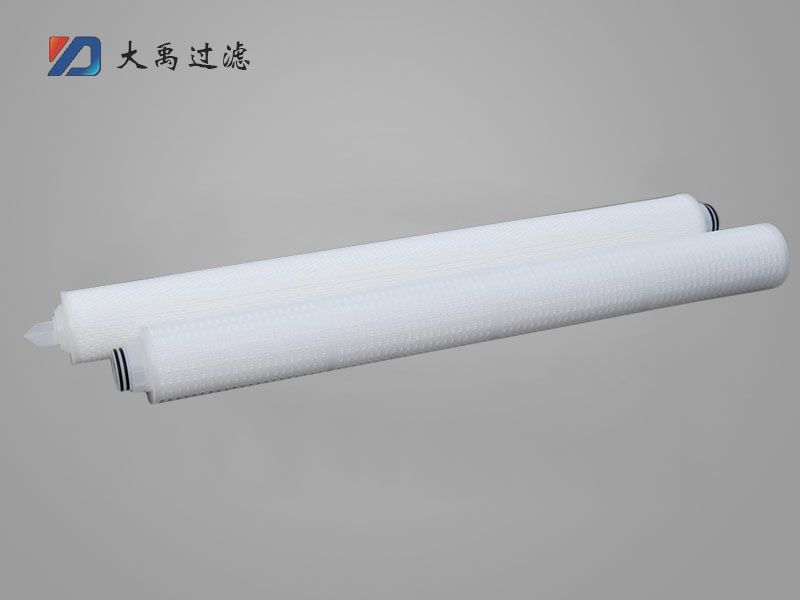

Micro porous folded membrane filter cartridgeThe microporous folding membrane filter is made by folding ultra-fine fiber membrane and non-woven fabric or wire mesh. The filter shell, center rod, and end cover are all processed by hot melt welding, with no leakage or pollution. According to different operating conditions and filtration media, there are various options for fiber membranes: polypropylene (PP), polyether sulfone (PES), polytetrafluoroethylene (PTFE), nylon 6 (N6), and polyvinylidene fluoride (PVDF).Technical indicatorsFiltering accuracy: 0.1, 0.22, 0.45, 1, 5, 10, 20, 30, 60 μ m·Sealing materials: silicone rubber, nitrile rubber, EPDM rubber, fluororubber·Effective filtration area: 0.6 ㎡/10“·Filter diameter: outer diameter 69mm, inner diameter 28mm·Filter cartridge length: 10 ", 20", 30 ", 40"·Working temperature: 80 ℃, 0.28Mpa·Positive pressure difference: 0.42Mpa·Reverse pressure difference: 0.28Mpa·Sterilization conditions: 121 ℃ for 30 minutes·Interface types: flat press, 222 interface, 226 interface, threaded interface, customized other interfacesProduct Features·Hydrophilic filter membrane, uniform pore size distribution, high porosity, high flow rate and particle retention rate;·Has good temperature and acid alkali resistance;Application Fields·Electronics: pre filtration of reverse osmosis water system, pre filtration of deionized water system, chemical filtration, and pure water filtration;·Medicine: filtration of pharmaceutical, biological, and plasma products, compressed air and gas filtration;·Food and beverage industry: filtration of mineral water, beverages, fruit juice, and alcoholic beverages;·Chemistry: Organic solvents, ink filtration;·Petroleum: oilfield water injection filtration;·Filtration of electroplating solution, metal cutting fluid, photoresist, and magnetic mediaXinxiang Dayu Filter Equipment Co., Ltd. is a well-known enterprise specializing in the production of high flow filter cartridges, iron and manganese removal filter elements for power plant condensate, stator cooling water filter cartridges, PP melt blown and wire wound degreasing cotton filter cartridges, microporous folding membrane filter cartridges, stainless steel sintered filter cartridges, stainless steel security filters, and specialized filters for sanitation truck sprinklers. We approach every product with a professional perspective and focus on doing every little thing well. We always regard quality as the lifeblood of development and devote ourselves to creating quality in the filtration industry.Contact phone: 0373-3870511 Mobile: 13839073363 QQ: 719799544 Email: xxdayujh@163.com website: http://www.xxdayu.com Contact: Manager LiPerseverance and the spirit of craftsmanship; Down to earth, establish the Dayu brand.Website recommendation: http://www.xxdayu.com http://www.xxdayu.1688.com

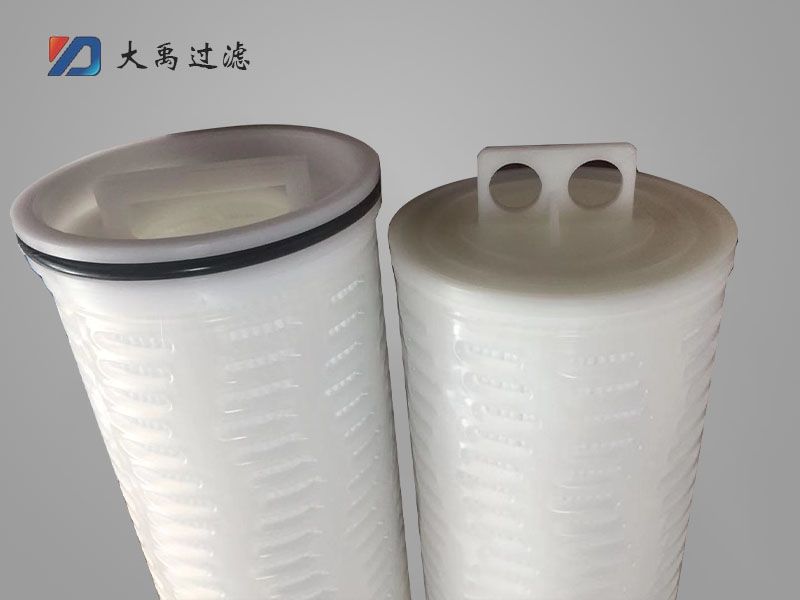

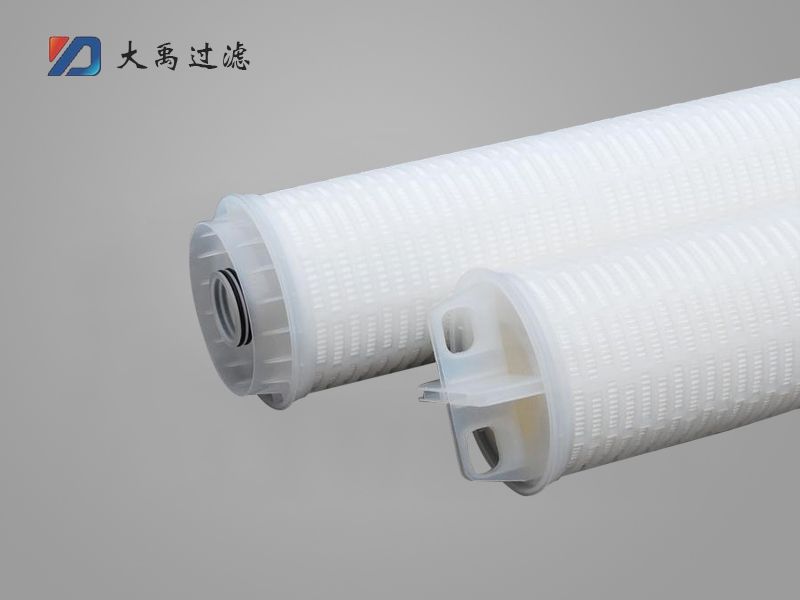

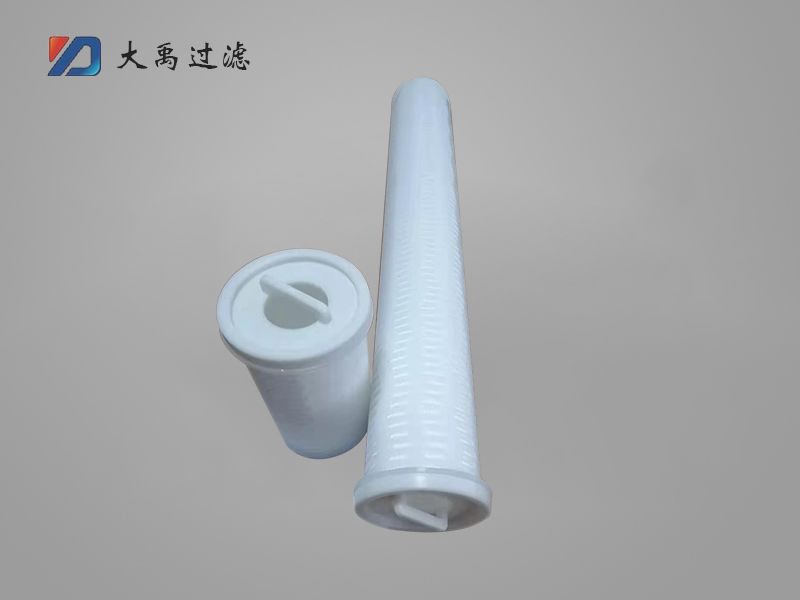

High flow filter element with internal pressure filtration, with one end open, and the flow mode of the filtered fluid is from inside to outside. The large diameter design of the filter element increases the effective filtration area, which can greatly reduce the number of filter elements and the size of the housing. Filtering has a long lifespan in applications, which can reduce investment and labor costs.Characteristics of high flow filter cartridge products·The filtering direction from inside to outside ensures that all impurities are trapped inside the filter element;·Gradual aperture structure, high pollutant absorption capacity, reducing labor and operating costs;·Smaller filter housings can be used to reduce investment costs and save floor space;·Replacement is faster, simpler, and safer, and the O-ring design ensures the reliability of the filter;·Hot melt adhesive material can prevent particle release and unloading.Technical specifications·Filter size: Outer diameter: 6 "(152mm)Length: 20 "(535mm), 40" (1024 mm), 60 "(1524mm)·Component Material:1. Filter materials: folded fiberglass, folded deep polypropylene (PP), melt blown polypropylene;2. Support/diversion layer: polypropylene;3. End cap: Glass fiber reinforced polypropylene;4. Sealing ring material: Ethylene propylene rubber, Nitrile rubber.5. Filtration accuracy: 1 μ m, 3 μ m, 5 μ m, 10 μ m, 20 μ m, 50 μ m, 75 μ m, 100 μ m;6. * * High operating temperature: Folding fiberglass: 121 ℃; Folding polypropylene: 82 ℃; Melt blown polypropylene: 65 ℃7. * * High pressure drop: 3.4 Bar8. Recommended pressure drop for filter replacement: 2.4Bar9. Suggestion: * * Large filtration flow rate: 20 "450LPM; 40" 800LPM; 60"1150LPM.Application Fields·Large scale reverse osmosis pretreatment filtration;·Pre filtration of high-purity water in the electronics industry;·Petrochemical industry amine liquid filtration, oilfield reinjection water filtration;·Power and coal chemical industry security filtration, seawater desalination pretreatment.

High flow filter element with internal pressure filtration, with one end open, and the flow mode of the filtered fluid is from inside to outside. The large diameter design of the filter element increases the effective filtration area, which can greatly reduce the number of filter elements and the size of the housing. Filtering has a long lifespan in applications, which can reduce investment and labor costs.Characteristics of high flow filter cartridge products·The filtering direction from inside to outside ensures that all impurities are trapped inside the filter element;·Gradual aperture structure, high pollutant absorption capacity, reducing labor and operating costs;·Smaller filter housings can be used to reduce investment costs and save floor space;·Replacement is faster, simpler, and safer, and the O-ring design ensures the reliability of the filter;·Hot melt adhesive material can prevent particle release and unloading.Technical specifications·Filter size: Outer diameter: 6 "(152mm)Length: 20 "(535mm), 40" (1024 mm), 60 "(1524mm)·Component Material:1. Filter materials: folded fiberglass, folded deep polypropylene (PP), melt blown polypropylene;2. Support/diversion layer: polypropylene;3. End cap: Glass fiber reinforced polypropylene;4. Sealing ring material: Ethylene propylene rubber, Nitrile rubber.5. Filtration accuracy: 1 μ m, 3 μ m, 5 μ m, 10 μ m, 20 μ m, 50 μ m, 75 μ m, 100 μ m;6. * * High operating temperature: Folding fiberglass: 121 ℃; Folding polypropylene: 82 ℃; Melt blown polypropylene: 65 ℃7. * * High pressure drop: 3.4 Bar8. Recommended pressure drop for filter replacement: 2.4Bar9. Suggestion: * * Large filtration flow rate: 20 "450LPM; 40" 800LPM; 60"1150LPM.Application Fields·Large scale reverse osmosis pretreatment filtration;·Pre filtration of high-purity water in the electronics industry;·Petrochemical industry amine liquid filtration, oilfield reinjection water filtration;·Power and coal chemical industry security filtration, seawater desalination pretreatment.

High flow filter element with internal pressure filtration, with one end open, and the flow mode of the filtered fluid is from inside to outside. The large diameter design of the filter element increases the effective filtration area, which can greatly reduce the number of filter elements and the size of the housing. Filtering has a long lifespan in applications, which can reduce investment and labor costs.Characteristics of high flow filter cartridge products·The filtering direction from inside to outside ensures that all impurities are trapped inside the filter element;·Gradual aperture structure, high pollutant absorption capacity, reducing labor and operating costs;·Smaller filter housings can be used to reduce investment costs and save floor space;·Replacement is faster, simpler, and safer, and the O-ring design ensures the reliability of the filter;·Hot melt adhesive material can prevent particle release and unloading.Technical specifications·Filter size: Outer diameter: 6 "(152mm)Length: 20 "(535mm), 40" (1024 mm), 60 "(1524mm)·Component Material:1. Filter materials: folded fiberglass, folded deep polypropylene (PP), melt blown polypropylene;2. Support/diversion layer: polypropylene;3. End cap: Glass fiber reinforced polypropylene;4. Sealing ring material: Ethylene propylene rubber, Nitrile rubber.5. Filtration accuracy: 1 μ m, 3 μ m, 5 μ m, 10 μ m, 20 μ m, 50 μ m, 75 μ m, 100 μ m;6. * * High operating temperature: Folding fiberglass: 121 ℃; Folding polypropylene: 82 ℃; Melt blown polypropylene: 65 ℃7. * * High pressure drop: 3.4 Bar8. Recommended pressure drop for filter replacement: 2.4Bar9. Suggestion: * * Large filtration flow rate: 20 "450LPM; 40" 800LPM; 60"1150LPM.Application Fields·Large scale reverse osmosis pretreatment filtration;·Pre filtration of high-purity water in the electronics industry;·Petrochemical industry amine liquid filtration, oilfield reinjection water filtration;·Power and coal chemical industry security filtration, seawater desalination pretreatment.

High flow filter element with internal pressure filtration, with one end open, and the flow mode of the filtered fluid is from inside to outside. The large diameter design of the filter element increases the effective filtration area, which can greatly reduce the number of filter elements and the size of the housing. Filtering has a long lifespan in applications, which can reduce investment and labor costs.Characteristics of high flow filter cartridge products·The filtering direction from inside to outside ensures that all impurities are trapped inside the filter element;·Gradual aperture structure, high pollutant absorption capacity, reducing labor and operating costs;·Smaller filter housings can be used to reduce investment costs and save floor space;·Replacement is faster, simpler, and safer, and the O-ring design ensures the reliability of the filter;·Hot melt adhesive material can prevent particle release and unloading.Technical specifications·Filter size: Outer diameter: 6 "(152mm)Length: 20 "(535mm), 40" (1024 mm), 60 "(1524mm)·Component Material:1. Filter materials: folded fiberglass, folded deep polypropylene (PP), melt blown polypropylene;2. Support/diversion layer: polypropylene;3. End cap: Glass fiber reinforced polypropylene;4. Sealing ring material: Ethylene propylene rubber, Nitrile rubber.5. Filtration accuracy: 1 μ m, 3 μ m, 5 μ m, 10 μ m, 20 μ m, 50 μ m, 75 μ m, 100 μ m;6. * * High operating temperature: Folding fiberglass: 121 ℃; Folding polypropylene: 82 ℃; Melt blown polypropylene: 65 ℃7. * * High pressure drop: 3.4 Bar8. Recommended pressure drop for filter replacement: 2.4Bar9. Suggestion: * * Large filtration flow rate: 20 "450LPM; 40" 800LPM; 60"1150LPM.Application Fields·Large scale reverse osmosis pretreatment filtration;·Pre filtration of high-purity water in the electronics industry;·Petrochemical industry amine liquid filtration, oilfield reinjection water filtration;·Power and coal chemical industry security filtration, seawater desalination pretreatment.

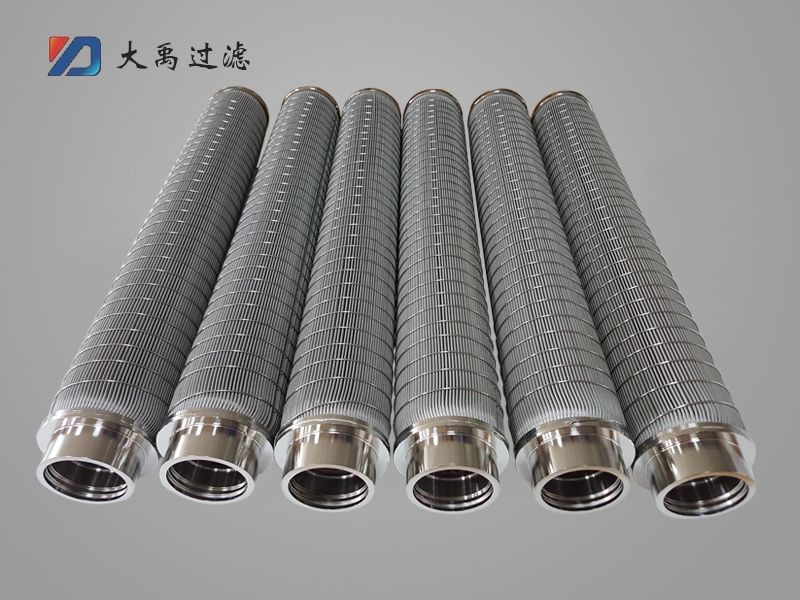

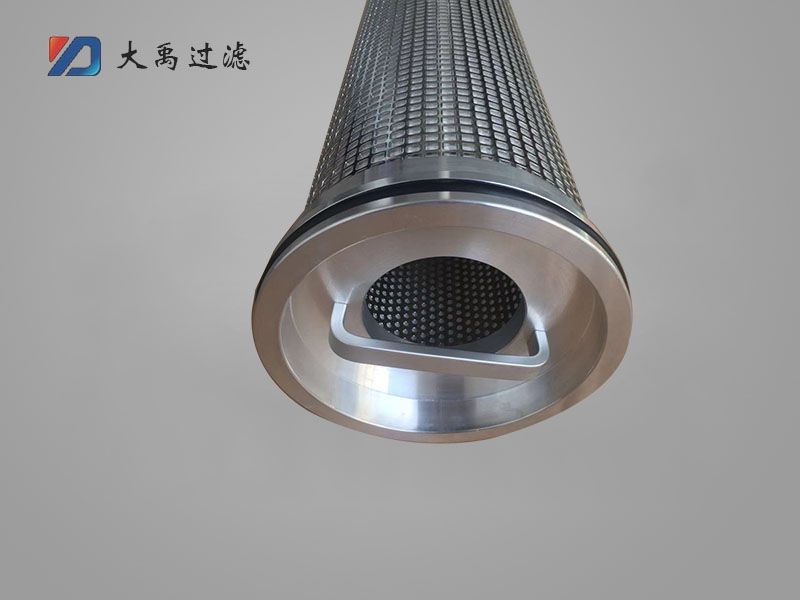

Customized stainless steel high flow filter element

Xinxiang Dayu Filter Equipment Co., Ltd. is a well-known enterprise specializing in the production of high flow filter cartridges, iron and manganese removal filter elements for power plant condensate, stator cooling water filter cartridges, PP melt blown and wire wound degreasing cotton filter cartridges, microporous folding membrane filter cartridges, stainless steel sintered filter cartridges, stainless steel security filters, and specialized filters for sanitation truck sprinklers. We approach every product with a professional perspective and focus on doing every little thing well. We always regard quality as the lifeblood of development and devote ourselves to creating quality in the filtration industry.Contact phone: 0373-3870511 Mobile: 13839073363 QQ: 719799544 Email: xxdayujh@163.com website: http://www.xxdayu.com Contact: Manager LiPerseverance and the spirit of craftsmanship; Down to earth, establish the Dayu brand.Website recommendation: http://www.xxdayu.com http://www.xxdayu.1688.com

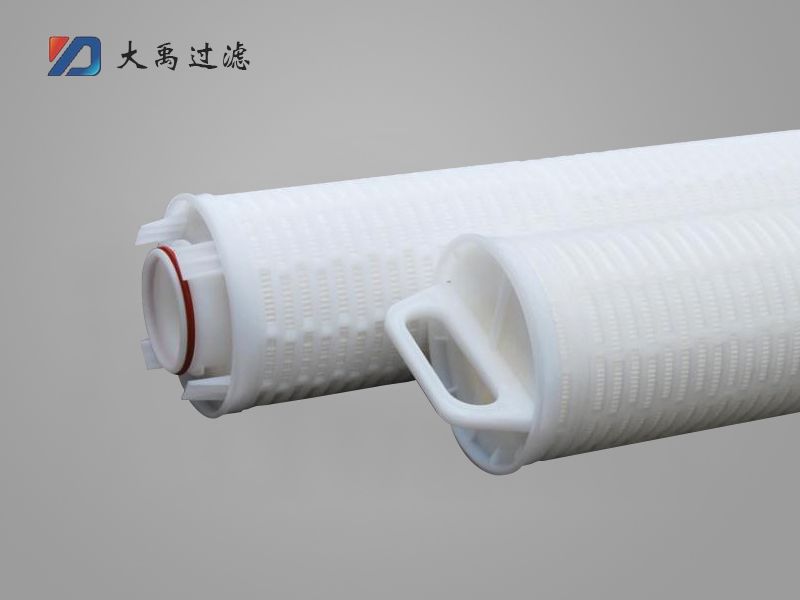

DY3M HIGHFLOW HF   DY3M HIGHFLOW HF high flow filter element with a large diameter design (165mm), external pressure filtration, high-strength support skeleton both inside and outside, using multi-layer composite progressive filtration material, overall hot melt welding, and external sealing ring. Single flow rate of 50-90m ³/H design, suitable for large-scale reverse osmosis pre filtration and other fields.Product Features·Under the guarantee of ultra-high pollutant capacity, the service life has been extended, thereby reducing costs;·The number of filter cartridges that need to be replaced has been significantly reduced, thereby saving labor costs;·The design of sealed interfaces reduces the risk of bypass flow, thereby improving filtration efficiency;·Easy to install, low labor cost;·The wide range of chemical applications can be applied to various fields.Technical specifications·Filter material: fiberglass, polypropylene (PP);·Support/diversion layer: polypropylene;·End cap material: glass fiber reinforced polypropylene;  ·Sealing ring material: Ethylene propylene rubber, PTFE coated fluororubber.Filter performance:·Filtering accuracy: 1 μ m, 3 μ m, 5 μ m, 10 μ m, 20 μ m, 50 μ m, 70 μ m, 100 μ m;·Operating temperature: 80 ℃;·Pressure drop: 3.4Barat82 ℃·Recommended pressure drop for filter replacement: 2.4Bar, 20 ℃·Suggested filtered water flow rate: 900LPMApplication Fields·Large scale reverse osmosis pretreatment filtration;·Pre filtration of high-purity water in the electronics industry;·Petrochemical industry amine liquid filtration, oilfield reinjection water filtration;·Power and coal chemical industry security filtration, seawater desalination pretreatment.Xinxiang Dayu Filter Equipment Co., Ltd. is a well-known enterprise specializing in the production of high flow filter cartridges, iron and manganese removal filter elements for power plant condensate, stator cooling water filter cartridges, PP melt blown and wire wound degreasing cotton filter cartridges, microporous folding membrane filter cartridges, stainless steel sintered filter cartridges, stainless steel security filters, and specialized filters for sanitation truck sprinklers. We approach every product with a professional perspective and focus on doing every little thing well. We always regard quality as the lifeblood of development and devote ourselves to creating quality in the filtration industry.Contact phone: 0373-3870511 Mobile: 13839073363 QQ: 719799544 Email: xxdayujh@163.com website: http://www.xxdayu.com Contact: Manager LiPerseverance and the spirit of craftsmanship; Down to earth, establish the Dayu brand.Website recommendation: http://www.xxdayu.com http://www.xxdayu.1688.com

DY3M HF40PP070A01DYMF high flow filter element with large diameter design (165mm), external pressure filtration, high-strength support skeleton both inside and outside, using multi-layer composite progressive filtration material, overall hot-melt welding, and external sealing ring. Single flow rate of 50-90m ³/H design, suitable for large-scale reverse osmosis pre filtration and other fields.Product Features·Under the guarantee of ultra-high pollutant capacity, the service life has been extended, thereby reducing costs;·The number of filter cartridges that need to be replaced has been significantly reduced, thereby saving labor costs;·The design of sealed interfaces reduces the risk of bypass flow, thereby improving filtration efficiency;·Easy to install, low labor cost;·The wide range of chemical applications can be applied to various fields.Technical specifications·Filter material: fiberglass, polypropylene (PP);·Support/diversion layer: polypropylene;·End cap material: glass fiber reinforced polypropylene;  ·Sealing ring material: Ethylene propylene rubber, PTFE coated fluororubber.Filter performance:·Filtering accuracy: 1 μ m, 3 μ m, 5 μ m, 10 μ m, 20 μ m, 50 μ m, 70 μ m, 100 μ m;·**High operating temperature: 80 ℃;·**High pressure drop: 3.4 bar at 82 ℃·Recommended pressure drop for filter replacement: 2.4Bar, 20 ℃·Suggestion: * * Large filtration water flow rate: 900LPMApplication Fields·Large scale reverse osmosis pretreatment filtration;·Pre filtration of high-purity water in the electronics industry;·Petrochemical industry amine liquid filtration, oilfield reinjection water filtration;·Power and coal chemical industry security filtration, seawater desalination pretreatment.Xinxiang Dayu Filter Equipment Co., Ltd. is a well-known enterprise specializing in the production of high flow filter cartridges, iron and manganese removal filter elements for power plant condensate, stator cooling water filter cartridges, PP melt blown and wire wound degreasing cotton filter cartridges, microporous folding membrane filter cartridges, stainless steel sintered filter cartridges, stainless steel security filters, and specialized filters for sanitation truck sprinklers. We approach every product with a professional perspective and focus on doing every little thing well. We always regard quality as the lifeline of development and devote ourselves to creating the best quality in the filtration industry.Contact phone: 0373-3870511 Mobile: 13839073363 QQ: 719799544 Email: xxdayujh@163.com website: http://www.xxdayu.com Contact: Manager LiPerseverance and the spirit of craftsmanship; Down to earth, establish the Dayu brand.Website recommendation: http://www.xxdayu.com http://www.xxdayu.1688.com

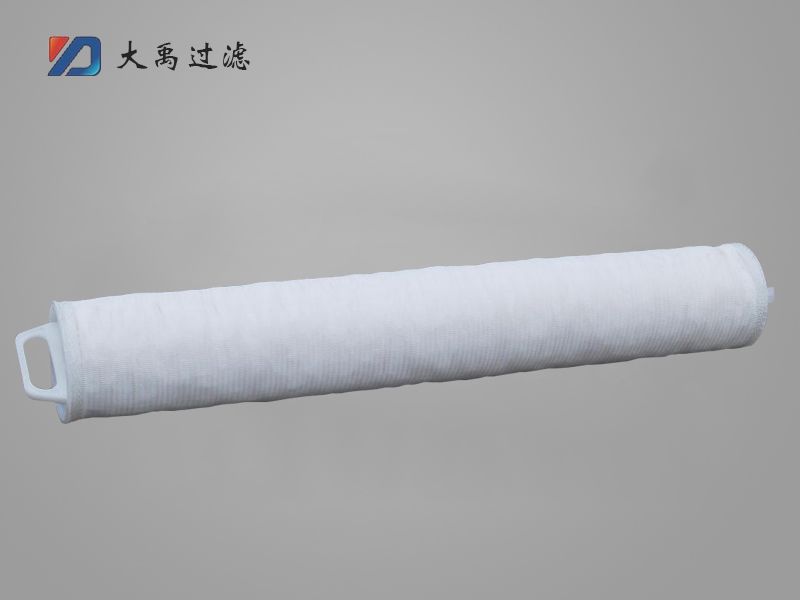

Non standard high flow filter element

Non standard high flow filter element

DY3M PERMIL570UASC03　　  DY3MPERMIL570UASC03Large flow rate cartridge with large diameter design (165mm), external pressure filtration, high strength support skeleton both inside and outside, multi-layer composite progressive filtration material, overall hot melt welding, external sealing ring. Single branch flow rate 50-90m³/H design, suitable for large reverse osmosis pre-filtration and other fields.　　Product Characteristics　　-Extended service life guaranteed by ultra-high dirt-holding capacity, thus reducing costs;　　-The number of filter cartridges to be replaced is substantially reduced, thus saving labor costs;　　-The design of the sealed interface reduces the risk of bypass flow, thus increasing filtration efficiency;　　-Easy installation and low labor costs;　　-Wide range of chemical applicability can be used in a variety of applications.　　Technical Specifications　　-Filter media: glass fiber, polypropylene (PP);　　-Support/deflector layer: polypropylene;　　-End cap material: glass fiber reinforced polypropylene (PP); 　　-Seal material: ethylene propylene rubber, Teflon-coated Viton.　　Filter cartridge performance:　　-Filtration precision:1μm, 3μm, 5μm, 10μm, 20μm, 50μm, 70μm, 100μm;　　-Operating temperature: 80℃;　　-Pressure drop: 3.4Barat82℃.　　-Recommended pressure drop for cartridge replacement: 2.4Barat20℃.　　-Recommended water flow rate: 900LPM 　　Application areas: -Large-scale reverse osmosis pretreatment filtration　　-Large reverse osmosis pretreatment filtration;　　-Electronic industry high-purity water pre-filtration;　　-Petrochemical industry amine liquid filtration, oilfield reinjection water filtration;　　-Electric power, coal chemical industry security filtration, seawater desalination pretreatment.　　Xinxiang Dayu Filtration Equipment Co., Ltd. is a well-known enterprise specializing in the production of high-flow filter element, power plant condensate iron and manganese removal filter element, stator cooling water filter element, PP meltblown and wire-wound skimmed cotton filter element, microporous folded membrane filter element, stainless steel sintered filter element, stainless steel security filter, sanitation truck sprinkler special filter and other products. We use a professional perspective to create each product, to focus on the mind to do a good job in every little thing, always regard quality as the lifeblood of development, and subconsciously build the quality of the filtration industry.　　　　Recommended Sites：　　http://www.xxdayu.com　　http://www.xxdayu.1688.com
