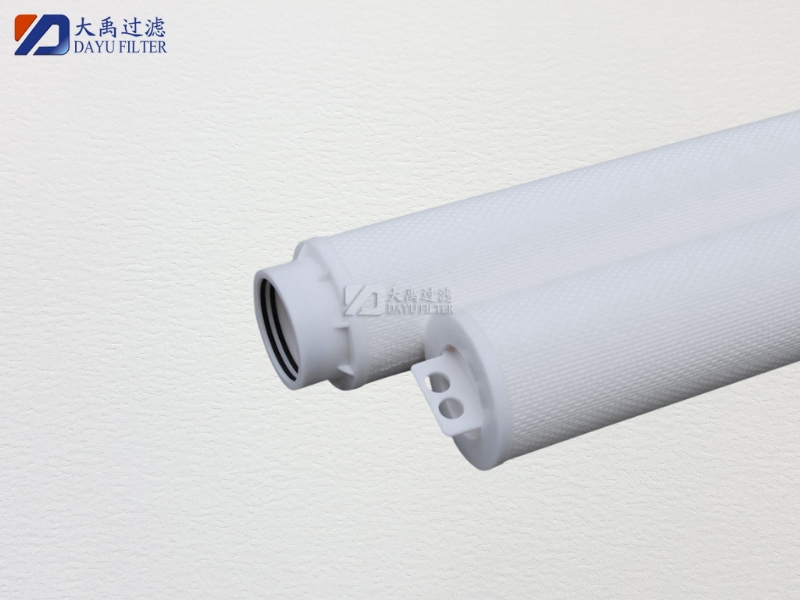

DY Rizonflow  RFP005-40NPX-L

DY Rizonflow RFP005-40NPX-L high flow rate cartridge large diameter design, external pressure filtration, internal high strength support skeleton, multi-layer composite progressive filtration material, overall heat fusion welding, built-in sealing ring. Single branch flow rate 50-90m³/H design, suitable for large reverse osmosis pre-filtration and other fields.

　　Product Characteristics

　　-High dirt-holding capacity and long service life of the filter element;

　　-Design of sealing interface reduces the risk of bypass flow and improves filtration efficiency;

　　Technical specifications

　　-Material of parts: Filter material: polypropylene (PP), glass fiber.

　　     Support/deflector layer: polypropylene

　　     End cap material: glass fiber reinforced polypropylene

　　     Seal material: ethylene-propylene rubber, silicone rubber, fluorine rubber, nitrile rubber

　　-Cartridge performance: Filtration precision: 1μm, 5μm, 10μm, 20μm, 40μm, 70μm, 100μm

　　     Operating temperature: 82℃

　　     Pressure drop: 3.4Bar82℃

　　     Recommended filtration flow rate: 1300LPM

　　Application areas

　　-Large-scale reverse osmosis pretreatment filtration;

　　-High-purity water pre-filtration for electronic industry;

　　-Petrochemical industry amine liquid filtration, oilfield reinjection water filtration;

　　-Electric power, coal chemical industry security filtration, seawater desalination pretreatment.
