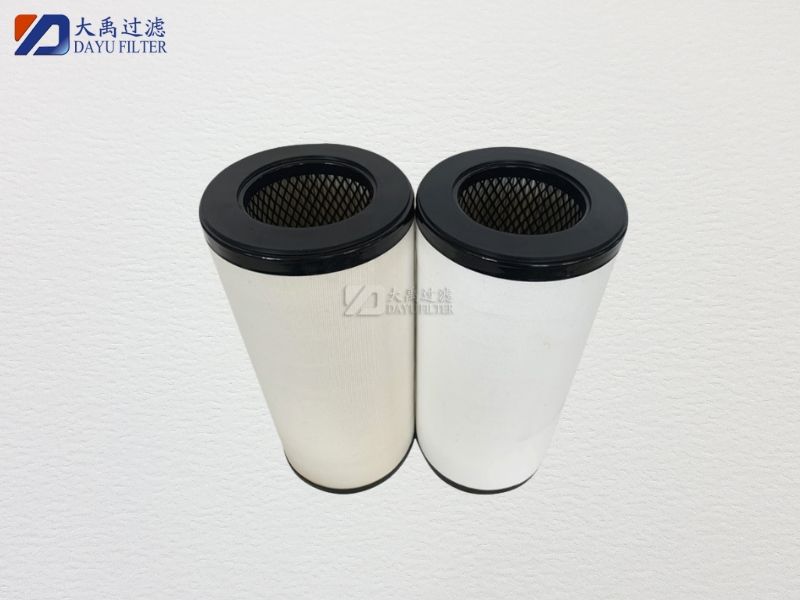

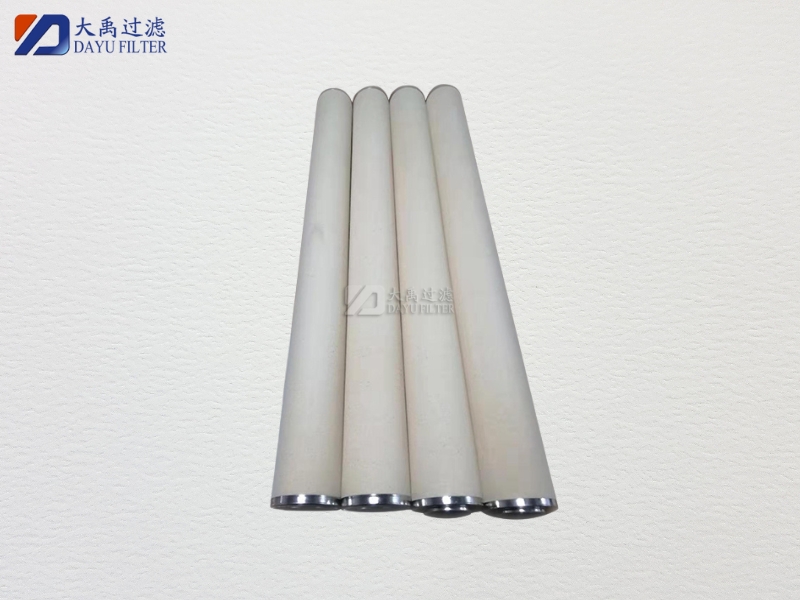

Natural gas filter cartridge is a product that can filter natural gas at different levels, which can effectively protect the safe and efficient operation of natural gas equipment and provide a stable supply of high-purity gas. We can also manufacture filters and cartridges for high and low pressure pipelines for different working conditions. At the same time can also be very good to extend the life of the equipment, better meet the requirements of people for the fine degree of the product, which can better improve the quality of the product itself, while greatly saving production costs.

　　Natural gas cartridge performance:

　　1 good filtration performance, 1-200μm filtration particle size can play a uniform surface filtration performance;

　　2 good corrosion resistance, heat resistance, pressure resistance, wear resistance;

　　3 Uniform filtration precision of air holes;

　　4 large flow rate per unit area;

　　5 applicable to low-temperature and high-temperature environments; can be reused after cleaning, free of replacement.

　　Natural gas cartridge main parameters:

　　Working pressure: 0.4MPa, 1.6MPa, 4.0MPa, 6.4MPa (above 6.4MPa can be customized as required).

　　Operating temperature: -10~+50℃.

　　Filtration precision: 1μm, 3μm, 5μm, 10μm, 20μm, 50μm, 100μm, 120μm, 140μm and so on.

　　Filtration efficiency: 99.99% filtration of solid particles (depending on the selected filtration precision).
