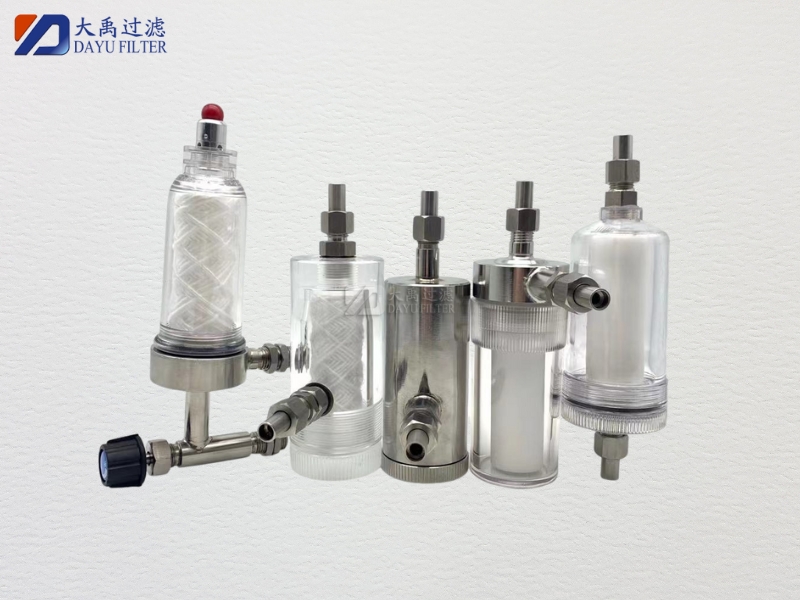

Water sample filters are used to filter instrument sample water, protecting the instrument electrodes.

Primary design parameters:

Nominal pressure: 0.8 MPa

Maximum temperature resistance: 100°C

Material: Polymethyl methacrylate

Filter mesh size: 100 mesh Water sample filter GN03D, with matching connectors, made of acrylic material, shatter-resistant.

1. The GN03D water sample filter features an innovative design. To replace or clean the filter element, simply unscrew the bottom cover.

2. A check valve is installed at the filter outlet to prevent loss of water from the instrument electrodes.

3. The GN03D water sample filter housing primarily uses PC alloy material.

The filter element typically uses a PP wound filter element with a standard filtration precision of 20 mesh.

4. Connection method: Threaded connection

Connection Thread: M14 x 1.5 for simple and convenient installation.

Flow Rate: 2.5 L/min

Overall Height: Approximately 142 mm

GN03D-01 Water Sample Filter Cartridge Technical Parameters:

1. Nominal Pressure: ≤0.8 MPa

2. Test Pressure: 1.0 MPa

3. Applicable Medium: Instrument sample water

4. Applicable Temperature: ≤60°C

5. Flow Rate: 2000 ml/min
