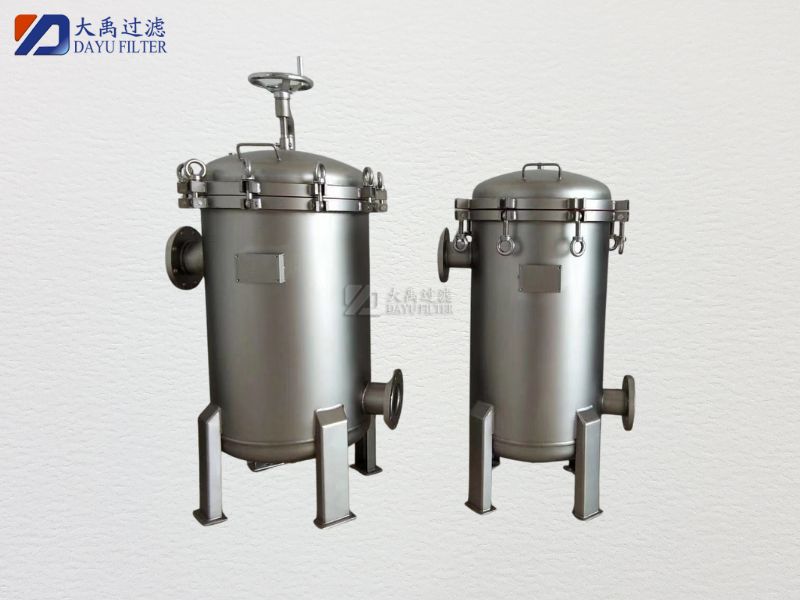

Security filter is made of high quality imported 304 or 316L stainless steel, internally uses PP melt injection, wire burning, folding, titanium filter, activated carbon filter element as filter elements, select different filter elements according to different filter media and design processes to remove solid particles, bacteria and other impurities in the fluid to meet the requirements of water quality.

Technical parameter

Design pressure: 0.75—1.6Mpa

Design temperature: 20℃ ~120℃

Sealed type: O-ring and flat cushion

Seal material: nitrile rubber, silicone, fluorine rubber label, the standard configuration is silicone seal

Interface form: tooth, clamp, GB, HG, DIN, ANSI, JIS standard flanges

Suitable filter element: flat port, 222,226 socket filter element

Surface treatment: matte spray beads, mirror polishing, electrolytic polishing

Filter accuracy: 0.1  μm- -150 μm

Material: SUS304 316L

Product characteristics

1. The equipment may do any horizontal or vertical structure according to the space.

2 .Filter elements with any core number and accuracy can be selected according to the flow rate and accuracy requirements.

3. The sealing partition of the filter element adopts CNC precision boring, which can ensure that there is no liquid bypass side leakage.

4. The filter element inside and outside the filter element, can ensure that the filter element does not shake and tilt during operation, to ensure the sealing performance.

5. Open The equipment quickly using the ring bolt, making it more convenient to maintain the equipment and replace the filter element.

Application area

1.Electronics, power station, microelectronics, semiconductor industry for high pure water security filtration, terminal filtration;

2.Security filtration and terminal filtration, nano-filter (NF), ultrafiltration (UF), reverse osmosis (RO), electroseepage analysis (EDI) and other systems;

3.Medical needles, large infusion, eye drops, Chinese herbal medicine medicine and other filtration, biological extraction, purification, enrichment;

4.Oil field back to water injection, boiler supply water, chemical reagents, liquid organic products, high-purity chemicals, concentrated medicine and other filtration;

5.Drink pure water, mineral water, fruit juice, tea drinks, health drink filtration;

6.Filtering of white wine, wine, beer, yellow rice wine and other fruit wine, pure raw beer sterilization filtration;

7.Pre-treatment and filtration or security filtration during production and domestic wastewater treatment and medium water recycling and reuse;

8.All kinds of liquid filtration, clarification, purification treatment.
