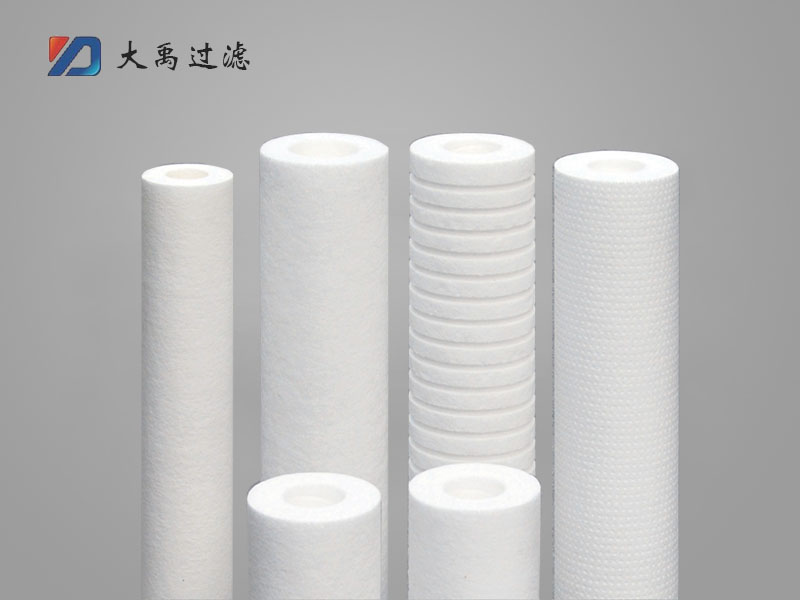

Hook groove melt blown filter element

The polypropylene PP melt blown filter cartridge produced by Xinxiang Dayu Filtration Equipment Co., Ltd. is made by hot-melt entanglement of polypropylene ultrafine fibers, without using any chemical adhesives. The fibers are randomly bonded to form a three-dimensional microporous structure, integrating surface, deep layer, and coarse filtration without fiber shedding. Due to the high filtration accuracy and pollutant holding capacity formed by fibers and density in the diameter direction of the filter cartridge, the deep filtration structure with gradually changing pore size from outer to inner can effectively remove suspended solids, particles, rust and other impurities in the flowing liquid, with high filtration effect and long service life. A widely used and cost-effective water treatment filter element in various industries.

Product Features

Progressive density structure increases the capacity of the filter element for dirt

·Reinforced surface fiber structure, less prone to hair loss

·Made of PP ultra-fine fiber, with high filtration accuracy

·100% pure PP, high corrosion resistance

·Fine lines or grooves on the surface increase the filtering surface area

·The interception efficiency reaches 98% (filtration accuracy of 1 micron)

Technical specifications

·Filter size: Outer diameter: 63mm115mm Inner diameter: 28mm, 30mm Length: 10 ", 20", 30 ", 40"

·Component material: Filter material: Polypropylene (PP)

·End cap: Polypropylene, with multiple types of end caps available for different applications

·Center pole: polypropylene,

·Gaskets/sealing rings: silicone rubber, ethylene propylene rubber, nitrile rubber, fluororubber

·Filter performance: Filtration accuracy: 1 µ m, 3 µ m, 5 µ m, 10 µ m, 25 µ m

Operating temperature: 65 ℃

Pressure difference: 2.0Bar at 21 ℃

Application areas:

·Livelihood drinking water filtration, RO reverse osmosis filtration

·Filtration of acidic and alkaline liquids in industrial chemical processes

·Industrial water and electroplating solution filtration

·Filtering of imaging drug solution and ink

·Pre filtration treatment of sterile water and ultrapure water

·Filtration of chemical raw materials and organic solvents

Xinxiang Dayu Filter Equipment Co., Ltd. is a well-known enterprise specializing in the production of high flow filter cartridges, iron and manganese removal filter elements for power plant condensate, stator cooling water filter cartridges, PP melt blown and wire wound degreasing cotton filter cartridges, microporous folding membrane filter cartridges, stainless steel sintered filter cartridges, stainless steel security filters, and specialized filters for sanitation truck sprinklers. We approach every product with a professional perspective and focus on doing every little thing well. We always regard quality as the lifeblood of development and devote ourselves to creating quality in the filtration industry.

Contact phone: 0373-3870511 Mobile: 13839073363 QQ: 719799544 Email: xxdayujh@163.com website: http://www.xxdayu.com Contact: Manager Li

Perseverance and the spirit of craftsmanship; Down to earth, establish the Dayu brand.
