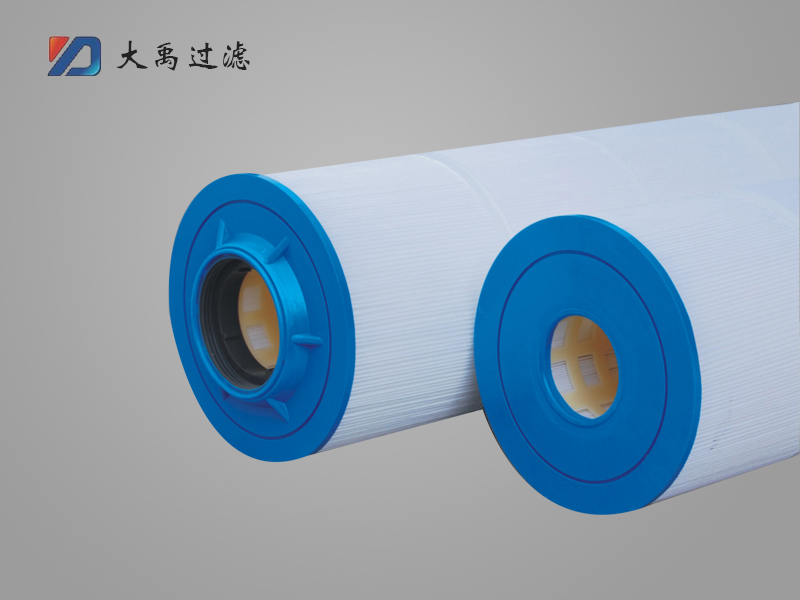

HARMCO HTC-170AM series filter cartridge

The HTC-170AM series folding high flow filter element adopts polyester fiber cloth filter material, which has durable performance. The filter medium, center rod, and end cap are glued together as a whole to ensure better sealing of the end cap. Due to its folding design, compared with other filter elements, it provides a larger filtration area, longer filtration life, reduces the number of filter element updates, and lowers filtration costs.

Product Features

·Large pollution capacity and low pressure difference;

·The multi fold design increases the filtering area and reduces the number of filter element replacements.

Technical specifications

·Filter size: Outer diameter: 7-3/4 "(197mm) Length: 9-5/8" (245mm) 19-1/2 "(495mm) 30-3/4" (781mm)

·Component Material: Filter Material: Polyester Fiber Membrane

·End cap: PU

·Filter performance: Filtration accuracy: 1 μ m, 5 μ m, 10 μ m, 20 μ m, 50 μ m

Operating temperature: 60 ℃

Operating pressure: 40PSI

Application Fields

·RO security filtration, seawater desalination pretreatment;

·Filtration of condensate water in power plants;

·Filtration of raw materials, solvents, and water in the biopharmaceutical industry;

·Paint, ink, CDs, magnetic media, petrochemicals, refining;

·Microelectronics, film, fiber, resin.
