1、 Technical parameters:

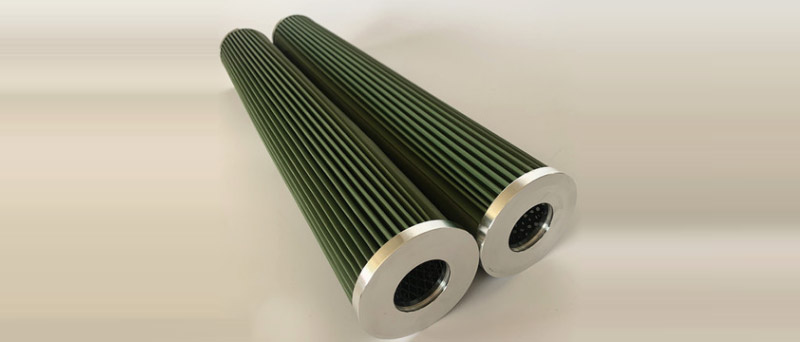

Product Name: Pump and Valve Pre filter Cartridge

Product specifications: φ 475 * φ 375 * 600mm

Design pressure: 6.5Mpa

Filtering accuracy: 5-100 μ m

2、 Design principles

1. Material selection

Due to the fact that this plan involves pre filter cartridges for pumps and valves, the metal components of the filter cartridges are required

SUS304 and SS316L have excellent high temperature and corrosion resistance, and can be used in various harsh material environments. After sintering, stainless steel mesh has excellent mechanical strength, which can achieve precise filtration accuracy and longer service life.

Its filtration accuracy is high, the pores are stable, and the phenomenon of pore size changing with pressure does not occur; Can effectively remove suspended solids and particles, with high filtration efficiency; High strength and good toughness, suitable for high-pressure environments; Easy to disassemble and reassemble, with filtration performance restored to over 90% after repeated cleaning and regeneration; Suitable for various corrosive media such as acids and alkalis.

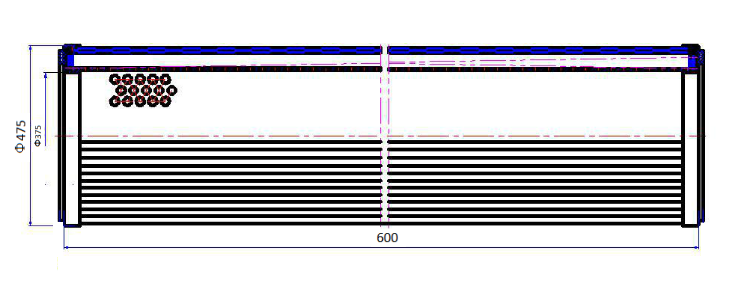

2. External dimensions of filter element

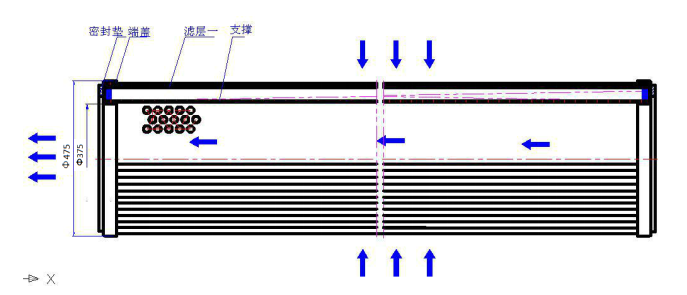

3. Composition and working principle

The gas passes through the shell and passes through the filter layer to remove solid particles, impurities, aerosols, and other desulfurization impurities. The filtered clean gas flows out of the inner hole and enters the filter outlet for subsequent system use. Impurities are regularly removed through the filter discharge outlet.
