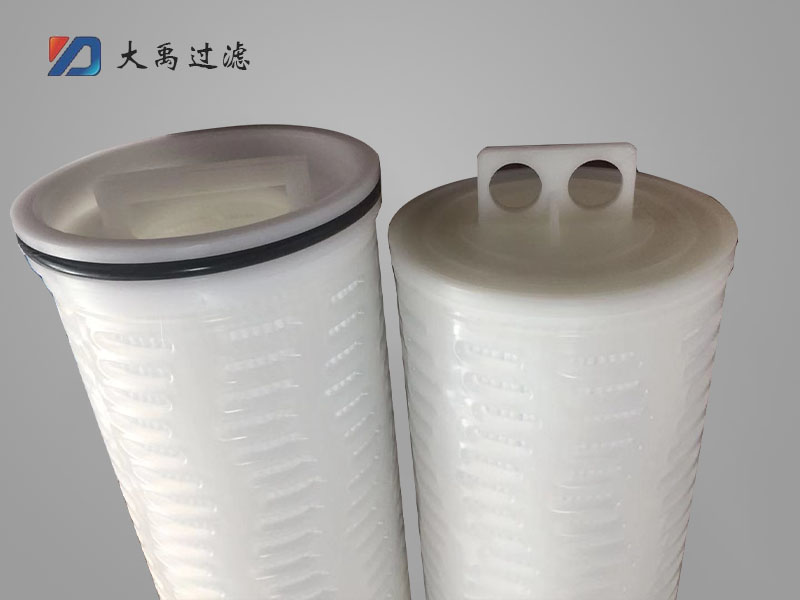

High flow filter element with internal pressure filtration, with one end open, and the flow mode of the filtered fluid is from inside to outside. The large diameter design of the filter element increases the effective filtration area, which can greatly reduce the number of filter elements and the size of the housing. Filtering has a long lifespan in applications, which can reduce investment and labor costs.

Characteristics of high flow filter cartridge products

·The filtering direction from inside to outside ensures that all impurities are trapped inside the filter element;

·Gradual aperture structure, high pollutant absorption capacity, reducing labor and operating costs;

·Smaller filter housings can be used to reduce investment costs and save floor space;

·Replacement is faster, simpler, and safer, and the O-ring design ensures the reliability of the filter;

·Hot melt adhesive material can prevent particle release and unloading.

Technical specifications

·Filter size: Outer diameter: 6 "(152mm)

Length: 20 "(535mm), 40" (1024 mm), 60 "(1524mm)

·Component Material:

1. Filter materials: folded fiberglass, folded deep polypropylene (PP), melt blown polypropylene;

2. Support/diversion layer: polypropylene;

3. End cap: Glass fiber reinforced polypropylene;

4. Sealing ring material: Ethylene propylene rubber, Nitrile rubber.

5. Filtration accuracy: 1 μ m, 3 μ m, 5 μ m, 10 μ m, 20 μ m, 50 μ m, 75 μ m, 100 μ m;

6. * * High operating temperature: Folding fiberglass: 121 ℃; Folding polypropylene: 82 ℃; Melt blown polypropylene: 65 ℃

7. * * High pressure drop: 3.4 Bar

8. Recommended pressure drop for filter replacement: 2.4Bar

9. Suggestion: * * Large filtration flow rate: 20 "450LPM; 40" 800LPM; 60"1150LPM.

Application Fields

·Large scale reverse osmosis pretreatment filtration;

·Pre filtration of high-purity water in the electronics industry;

·Petrochemical industry amine liquid filtration, oilfield reinjection water filtration;

·Power and coal chemical industry security filtration, seawater desalination pretreatment.
