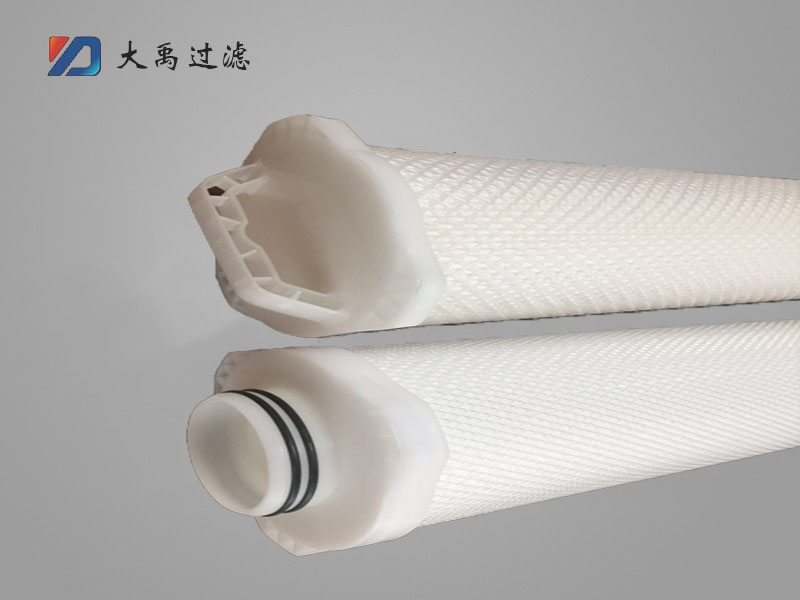

Customized ALN10-60B high flow cartridge has internal pressure type filtration, one end is open, and the filtration fluid flow is from inside to outside. The large diameter of the cartridge design increases the effective filtration area, which can greatly reduce the number of cartridges and reduce the size of the housing. The long filter life in the application reduces investment and labor costs.

High-flow filter cartridge Product characteristics

Inside-out filtration direction ensures that all impurities are retained inside the cartridge;

-Gradual pore size structure, high dirt-holding capacity, lower labor and operating costs;

-Smaller size filter housing can be used to reduce investment cost and save floor space;

-Replacement is faster, easier and safer, O-ring design ensures the reliability of the filter;

-Hot melt bonding material prevents particle release and unloading.

Technical Specifications

-Element size: OD: 6” (152mm)

          Length: 20“ (535㎜), 40” (1024㎜), 60” (1524㎜)

-Parts material:

1.Filter material: folded glass fiber, folded deep polypropylene (PP), meltblown polypropylene;

2. Support/deflector layer: polypropylene;

3. End cap: glass fiber reinforced polypropylene;

4. Seal material: ethylene propylene rubber, nitrile rubber.

5. Filtration precision: 1μm, 3μm, 5μm, 10μm, 20μm, 50μm, 75μm, 100μm;

6. Operating temperature: folded glass fiber: 121°C; folded polypropylene: 82°C; meltblown polypropylene: 65°C

7. Pressure drop: 3.4Bar

8. Recommended pressure drop for cartridge replacement: 2.4Bar

9. Recommended filtration flow rate: 20“ 450LPM; 40” 800LPM; 60” 1150LPM.

Applications

-Large reverse osmosis pretreatment filtration;

High purity water pre-filtration for electronic industry;

-Petrochemical industry amine liquid filtration, oilfield reinjection water filtration;

-Power, coal chemical industry security filtration, seawater desalination pretreatment.
