Natural gas pipelines

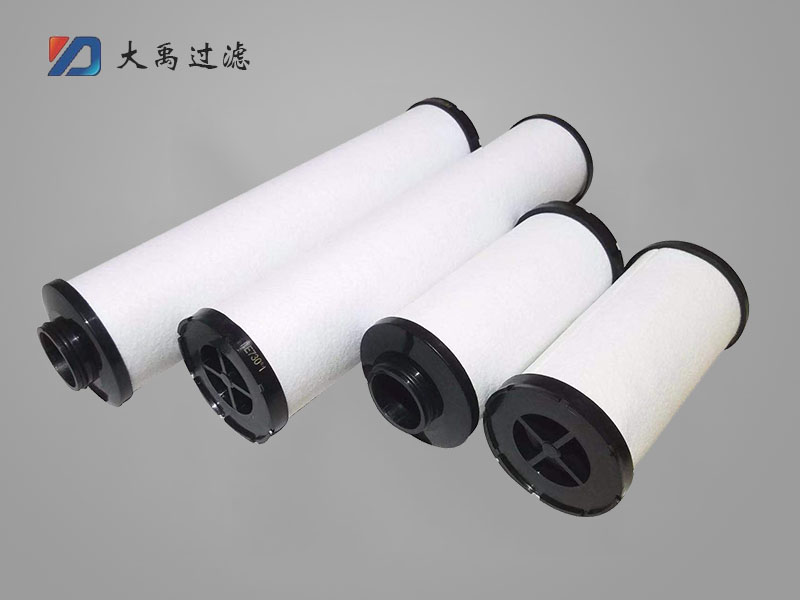

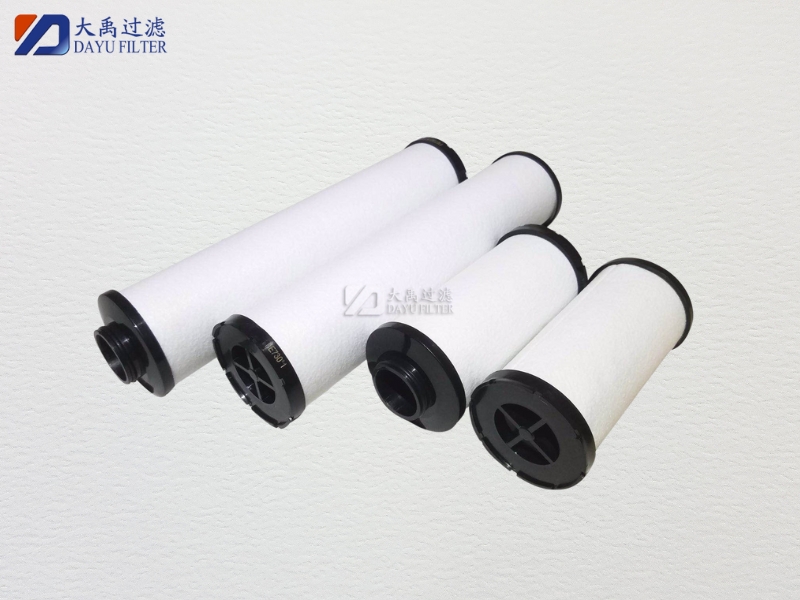

Dry Start Sealer Cartridge FE715*1

源头厂家 技术创新 高性价比

Factory Direct Supply

Fully Qualified

Free Guidance

Comprehensive After-sales Service

13613905650

Product Characteristics

Imported filter material is selected to ensure the filtration precision;

High filtration efficiency and stable performance.


Technical specification

Filter element size: φ36×64mm φ36×178mm φ52×158mm

φ62×223mm φ70×423mm φ115×470mm

Customized according to customer requirements


Material of parts

1. Filter material: glass fiber sintered, stainless steel fiber sintered felt

2. End cover material: stainless steel 316, 304

3. Skeleton material: stainless steel 316, 304

4.Filtration precision: 1μm, 3μm, 5μm, 10μm, 20μm.


Application areas

1. Syngas compressor dry gas seal isolator;

2. refrigerant compressor dry gas seal first stage filter;

3. ammonia compressor filter

4. High and low pressure cylinder isolation gas;

5. main sealing gas for high and low pressure cylinders

6. dry gas seal secondary seal.
